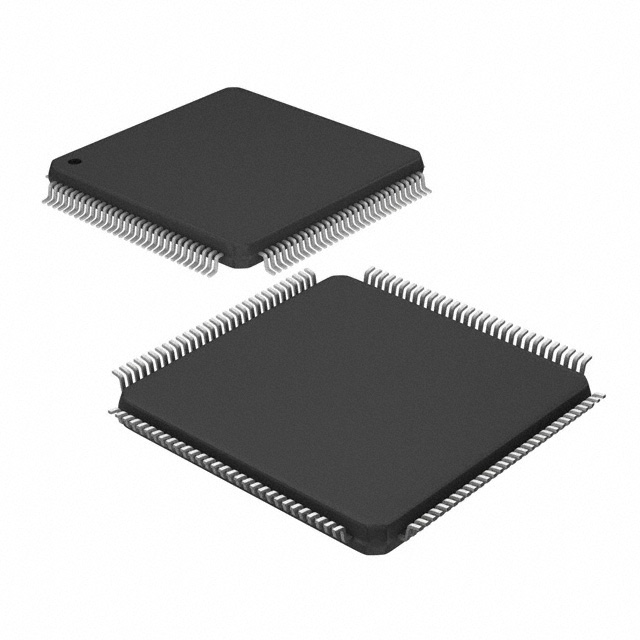

MB90522BPFV-G-137-BND
IC MCU 16BIT 64KB MROM 120QFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies MB90522BPFV-G-137-BND is a 16-bit microcontroller from the F²MC-16LX MB90520B series. This device features a 16MHz F²MC-16LX core and 64KB of Mask ROM program memory, complemented by 4KB of RAM. On-chip peripherals include an LCD controller, Power-On Reset (POR), and Watchdog Timer (WDT). Connectivity options consist of SCI, Serial I/O, and UART/USART interfaces. It also integrates an 8-channel 8/10-bit Analog-to-Digital converter and two 8-bit Digital-to-Analog converters. The microcontroller is housed in a 120-QFP (20x20) surface-mount package and operates within a voltage range of 2.7V to 5.5V, with an operating temperature of -40°C to 85°C. This component is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: F²MC-16LX MB90520BRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 120-BQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | Mask ROM |
| EEPROM Size | - |
| Core Processor | F²MC-16LX |
| Data Converters | A/D 8x8/10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SCI, Serial I/O, UART/USART |
| Peripherals | LCD, POR, WDT |
| Supplier Device Package | 120-QFP (20x20) |
| Number of I/O | 85 |
| Programmable | Not Verified |
