MB89P945PF-GE1
IC MCU 8BIT 16KB OTP 48QFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies F²MC-8L MB89940 series microcontroller featuring an 8-bit F²MC-8L core. This device, part number MB89P945PF-GE1, offers 16KB of One-Time Programmable (OTP) program memory and 512 bytes of RAM. The microcontroller operates at speeds up to 8MHz and includes integrated peripherals such as Low Voltage Detect (LVD), LCD controller, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). It also features two 8-bit Analog-to-Digital converters. Packaged in a 48-QFP (12x12) for surface mounting, it operates within a temperature range of -40°C to 85°C. The supply voltage range is 3.5V to 5.5V. This component is suitable for applications in industrial control and consumer electronics.
Additional Information
Series: F²MC-8L MB89940RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-BQFP |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | F²MC-8L |
| Data Converters | A/D 2x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 5.5V |
| Connectivity | - |
| Peripherals | LVD, LCD, POR, PWM, WDT |
| Supplier Device Package | 48-QFP (12x12) |
| Number of I/O | 24 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

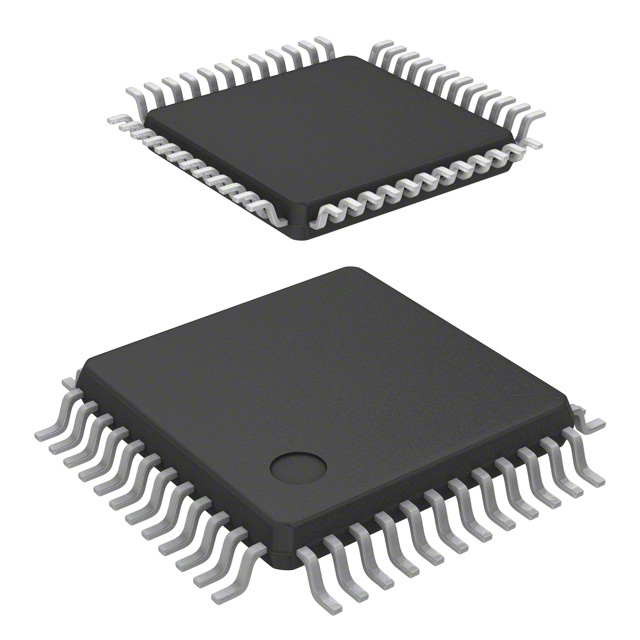

MB89943PF-G-102-BND
