CYT3BBBCEBQ1BZSGST
TRAVEO-2 BODY HIGH-ENDManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More

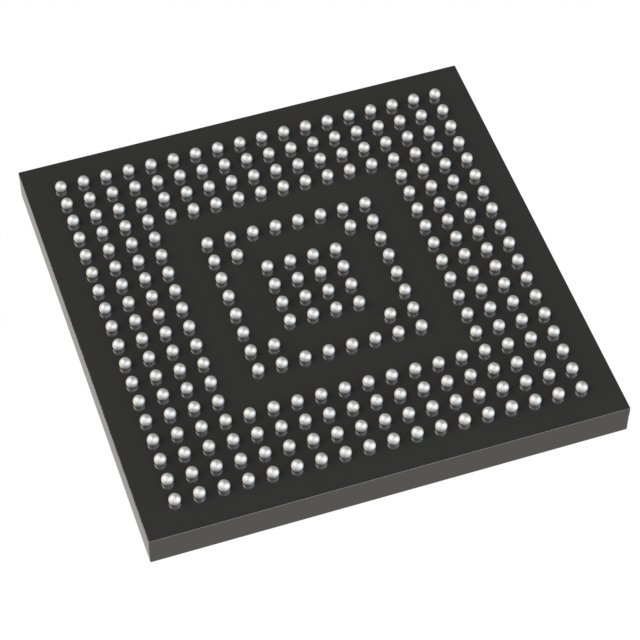

Infineon Technologies Traveo™ T2G CYT3BBBCEBQ1BZSGST is a 32-bit dual-core microcontroller featuring ARM® Cortex®-M0+ and ARM® Cortex®-M7F cores operating at 100MHz and 250MHz respectively. This automotive-grade component offers 4.0625MB of FLASH program memory and 768KB of RAM, alongside 256K x 8 EEPROM. Connectivity options include CANbus, Ethernet, I2C, LINbus, eMMC/SD, SPI, and UART/USART. Peripherals include Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, and WDT. The CYT3BBBCEBQ1BZSGST is housed in a 272-BGA (16x16) surface-mount package and operates within an ambient temperature range of -40°C to 105°C. It is qualified to AEC-Q100 standards and suitable for applications in automotive body control and advanced driver-assistance systems.
Additional Information
Series: Traveo™ T2GRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 272-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 100MHz, 250MHz |
| Program Memory Size | 4.0625MB (4.0625M x 8) |
| RAM Size | 768K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256K x 8 |
| Core Processor | ARM® Cortex®-M0+, ARM® Cortex®-M7F |
| Data Converters | A/D 72x12b SAR |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, eMMC/SD, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 272-BGA (16x16) |
| Grade | Automotive |
| Number of I/O | 207 |
| Qualification | AEC-Q100 |
