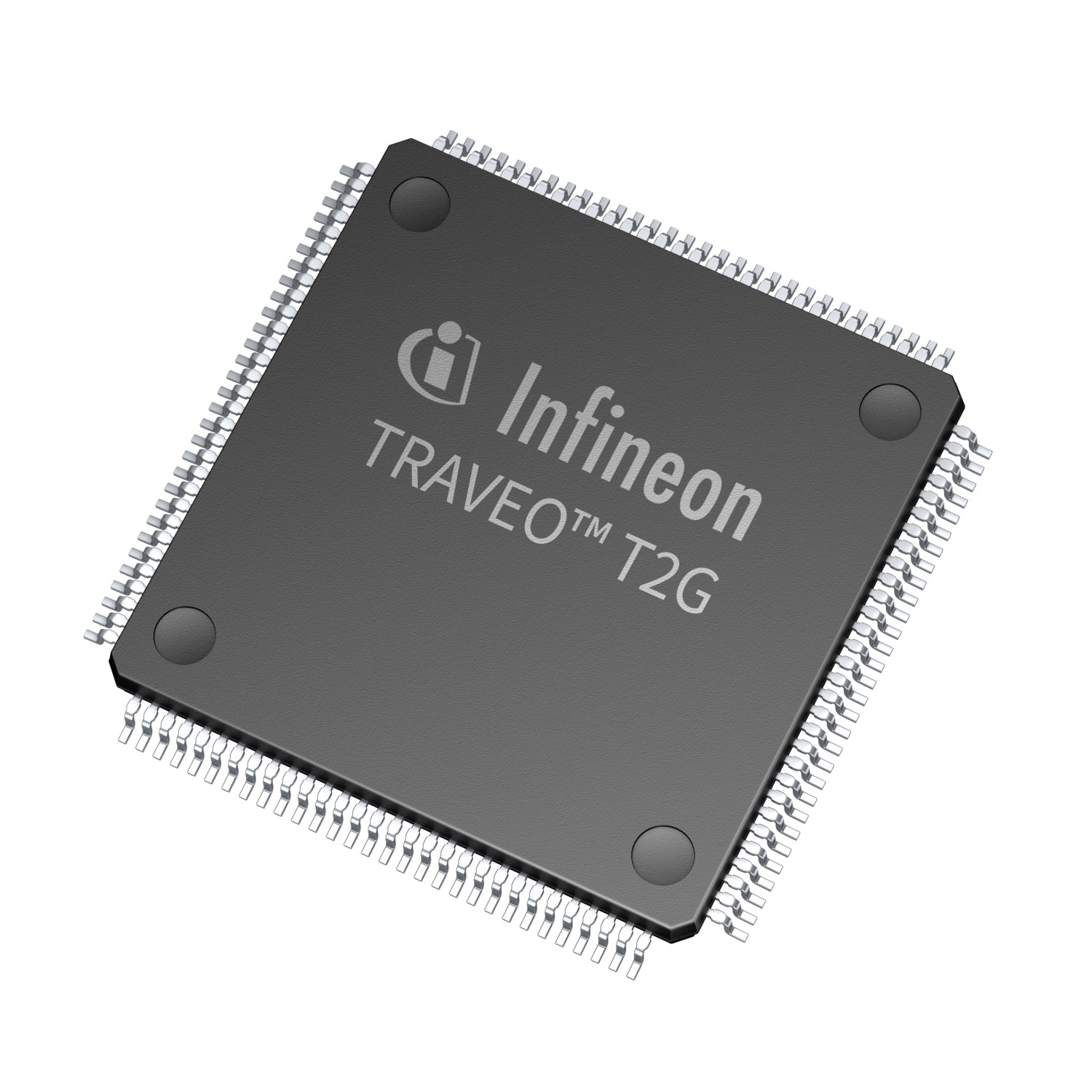

CYT3BB5CEBQ0AEEGS
IC MCU 32BT 4.0625MB FLSH 100QFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies Traveo™ T2G CYT3BB5CEBQ0AEEGS is a 32-bit dual-core microcontroller featuring ARM® Cortex®-M0+ and ARM® Cortex®-M7 cores. This device offers a program memory size of 4.0625MB FLASH and 768KB RAM, with an EEPROM size of 256K x 8. Operating at speeds of 100MHz and 250MHz, it includes extensive connectivity options such as CANbus, Ethernet, I2C, LINbus, eMMC/SD, SPI, and UART/USART. Peripheral support includes Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, and WDT. Data conversion is handled by 55x12b SAR ADCs. The CYT3BB5CEBQ0AEEGS is housed in a 100-TEQFP (14x14) package for surface mounting, with an operating temperature range of -40°C to 125°C (TA). This component is suitable for automotive and industrial applications.
Additional Information
Series: Traveo™ T2GRoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 100MHz, 250MHz |
| Program Memory Size | 4.0625MB (4.0625M x 8) |
| RAM Size | 768K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256K x 8 |
| Core Processor | ARM® Cortex®-M0+, ARM® Cortex®-M7 |
| Data Converters | A/D 55x12b SAR |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, eMMC/SD, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 100-TEQFP (14x14) |
| Number of I/O | 72 |
| Programmable | Not Verified |
