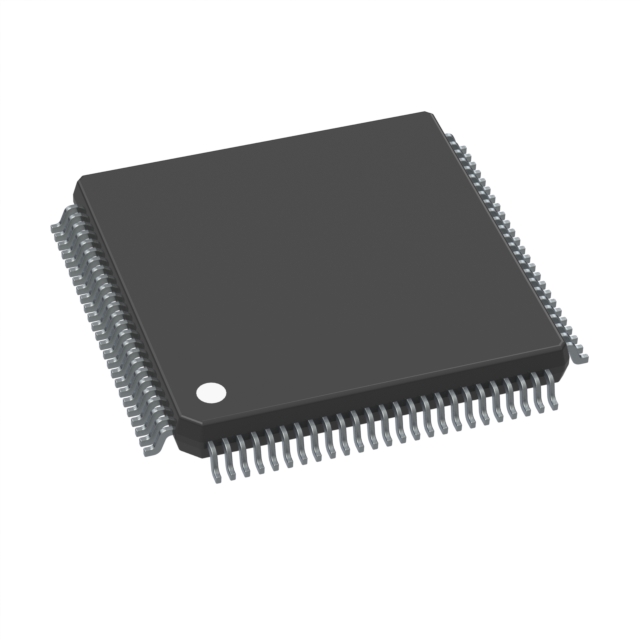

CYT2B95CACQ0AZEGS
TVII-B-E-2M-100REV A2 CFLASH 2MBManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies Traveo CYT2B9 microcontroller, part number CYT2B95CACQ0AZEGS, features a 32-bit dual-core ARM® Cortex®-M0+/M4F architecture operating at up to 100MHz and 160MHz. This device offers 2.0625MB of FLASH program memory and 256KB of RAM, alongside 128KB of EEPROM. It supports a wide range of connectivity options including CANbus, LINbus, SPI, UART/USART, I2C, and EBI/EMI. The CYT2B95CACQ0AZEGS includes 57 12-bit SAR analog-to-digital converters and essential peripherals such as DMA, PWM, WDT, Brown-out Detect/Reset, and POR. With 74 I/O lines and a 100-LQFP (14x14) surface mount package, it operates within a voltage range of 2.7V to 5.5V and across an industrial temperature range of -40°C to 125°C. This component is utilized in automotive applications for body control, instrument clusters, and gateway systems.
Additional Information
Series: Traveo CYT2B9RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 100MHz, 160MHz |
| Program Memory Size | 2.0625MB (2.0625M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| Core Processor | ARM® Cortex®-M0+/M4F |
| Data Converters | A/D 57x12b SAR |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 100-LQFP (14x14) |
| Number of I/O | 74 |
| Programmable | Not Verified |
