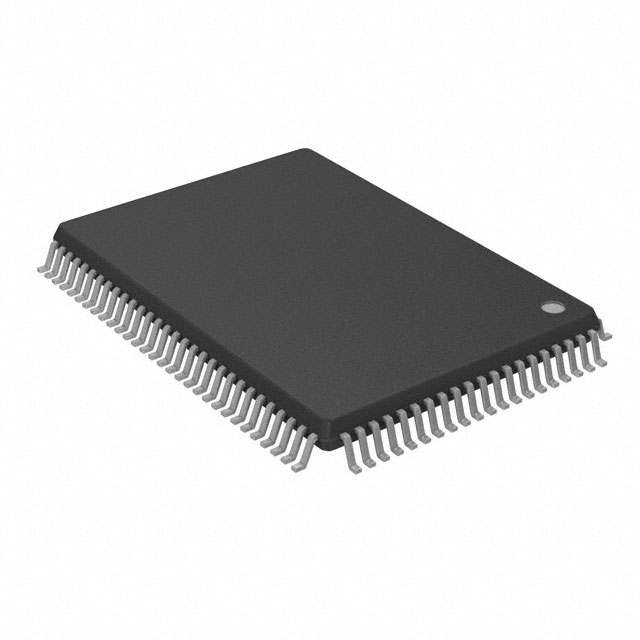

CY9BF566NPQC-G-JNE2
IC MCU 32BIT 544KB FLASH 100PQFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M4F FM4 MB9B560R Microcontroller IC 32-Bit Single-Core 160MHz 544KB (544K x 8) FLASH 100-PQFP (14x20)
Additional Information
Series: FM4 MB9B560RRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-BQFP |
| Mounting Type | Surface Mount |
| Speed | 160MHz |
| Program Memory Size | 544KB (544K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, CSIO, EBI/EMI, I2C, LINbus, SD, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 100-PQFP (14x20) |
| Number of I/O | 80 |
| Programmable | Not Verified |
Request a Quote
