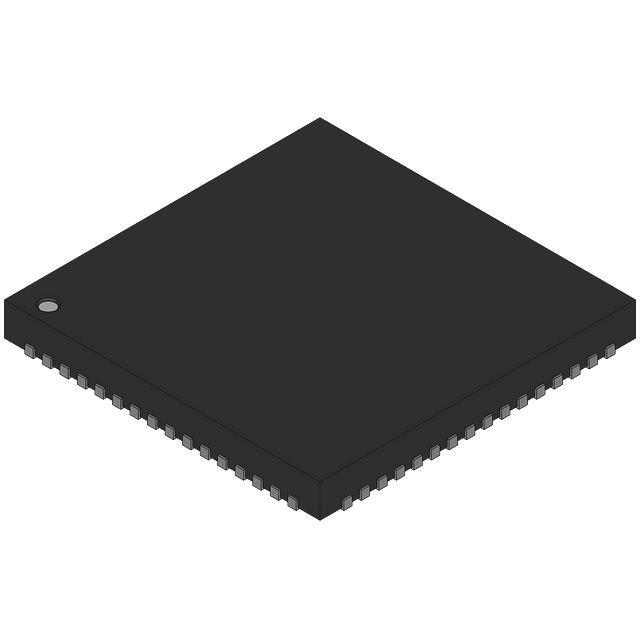

CY9BF124LQN-G-106-AVE2
IC MCU 32BIT 288KB FLASH 64QFNManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies CY9BF124LQN-G-106-AVE2 is a 32-bit ARM Cortex-M3 microcontroller from the FM3 MB9B120M series. This single-core device operates at 72MHz and features 288KB of FLASH program memory along with 32KB of RAM. It includes integrated peripherals such as DMA, LVD, POR, PWM, and WDT, and offers multiple communication interfaces including CSIO, I2C, LINbus, and UART/USART. The device incorporates 23x12-bit Analog-to-Digital converters and 2x10-bit Digital-to-Analog converters. Packaged in a 64-QFN (9x9) with an exposed pad, it supports surface mount installation and operates across a temperature range of -40°C to 105°C. Power supply voltage ranges from 2.7V to 5.5V. This component is suitable for applications in industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: FM3 MB9B120MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 72MHz |
| Program Memory Size | 288KB (288K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 23x12b; D/A 2x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CSIO, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 64-QFN (9x9) |
| Number of I/O | 50 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

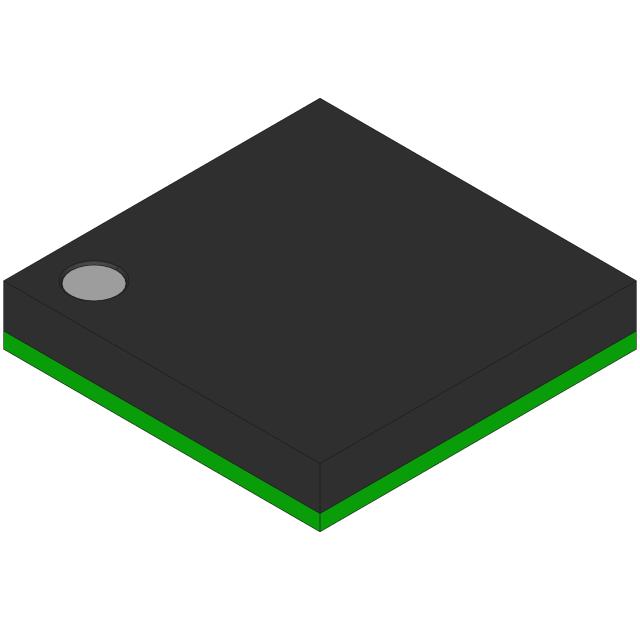

CY9BF121MBGL-GK9E1
