CY9AF121LWQN-G-JNE2
IC MCU 32BIT 64KB FLASH 64QFNManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
The Infineon Technologies FM3 MB9A120L series microcontroller, part number CY9AF121LWQN-G-JNE2, features an ARM Cortex-M3 32-bit single-core processor operating at 40MHz. This device offers 64KB of FLASH program memory and 4KB of RAM. Peripheral set includes CSIO, I2C, LINbus, SPI, UART/USART interfaces, along with DMA, LVD, POR, PWM, and WDT. It integrates 8x12-bit Analog-to-Digital converters and a 1x10-bit Digital-to-Analog converter. The CY9AF121LWQN-G-JNE2 is packaged in a 64-QFN (9x9) surface mount configuration and operates within a voltage range of 2.7V to 5.5V, with an ambient temperature range of -40°C to 105°C. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: FM3 MB9A120LRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CSIO, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 64-QFN (9x9) |
| Number of I/O | 51 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
CY9AF121KPMC-G-JNE2
IC MCU 32BIT 64KB FLASH 48LQFP
CY9AF121KWQN-G-JNE2
IC MCU 32BIT 64KB FLASH 48QFN

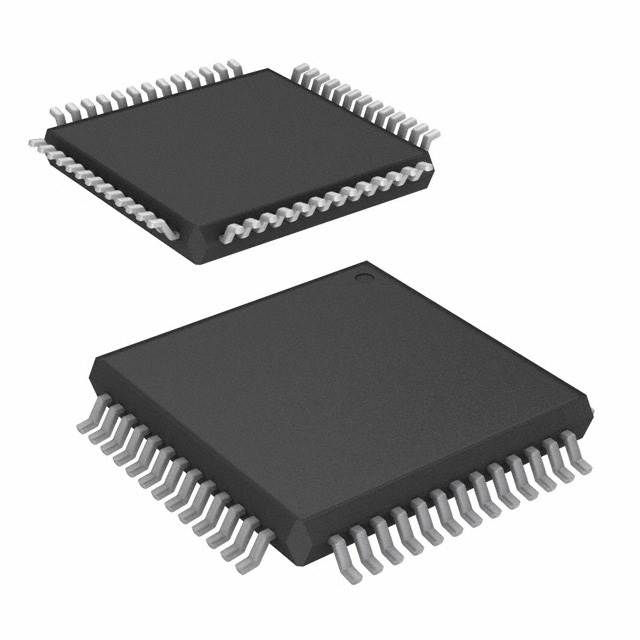

CY9AF121KPMC1-G-JNE2
