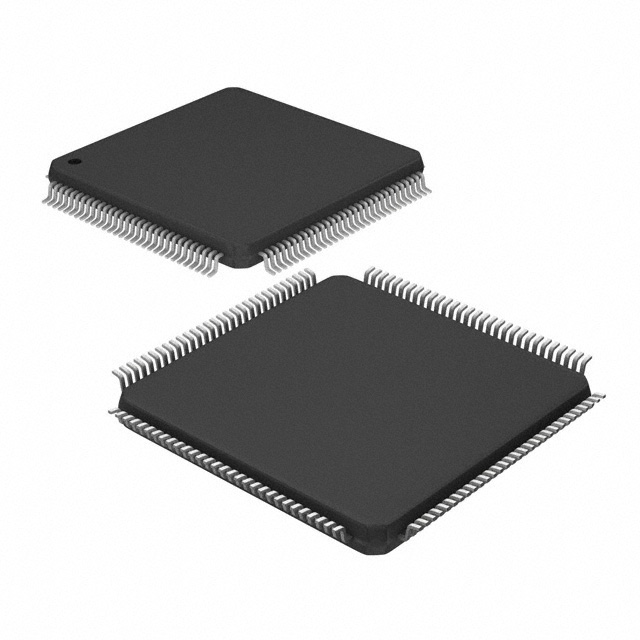

CY96F388HWBPMC-GS-UJE2
IC MCU 16BIT 576KB FLASH 120LQFPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies F²MC-16FX CY96380 series microcontroller, part number CY96F388HWBPMC-GS-UJE2, is a 16-bit embedded processor featuring a 56MHz core frequency. This device offers 576KB of FLASH program memory and 28KB of RAM, suitable for demanding applications. Connectivity options include CANbus, EBI/EMI, I2C, LINbus, SCI, and UART/USART interfaces. Integrated peripherals include DMA, LCD controllers, LVD, LVR, POR, PWM, and WDT. The microcontroller is equipped with 16x10-bit SAR analog-to-digital converters and supports up to 94 I/O lines. Housed in a 120-LQFP (16x16) surface-mount package, it operates within a temperature range of -40°C to 105°C. This component is utilized in industrial automation and automotive control systems.
Additional Information
Series: F²MC-16FX CY96380RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 120-LQFP |
| Mounting Type | Surface Mount |
| Speed | 56MHz |
| Program Memory Size | 576KB (576K x 8) |
| RAM Size | 28K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | F²MC-16FX |
| Data Converters | A/D 16x10b SAR |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, I2C, LINbus, SCI, UART/USART |
| Peripherals | DMA, LCD, LVD, LVR, POR, PWM, WDT |
| Supplier Device Package | 120-LQFP (16x16) |
| Number of I/O | 94 |
| Programmable | Not Verified |
