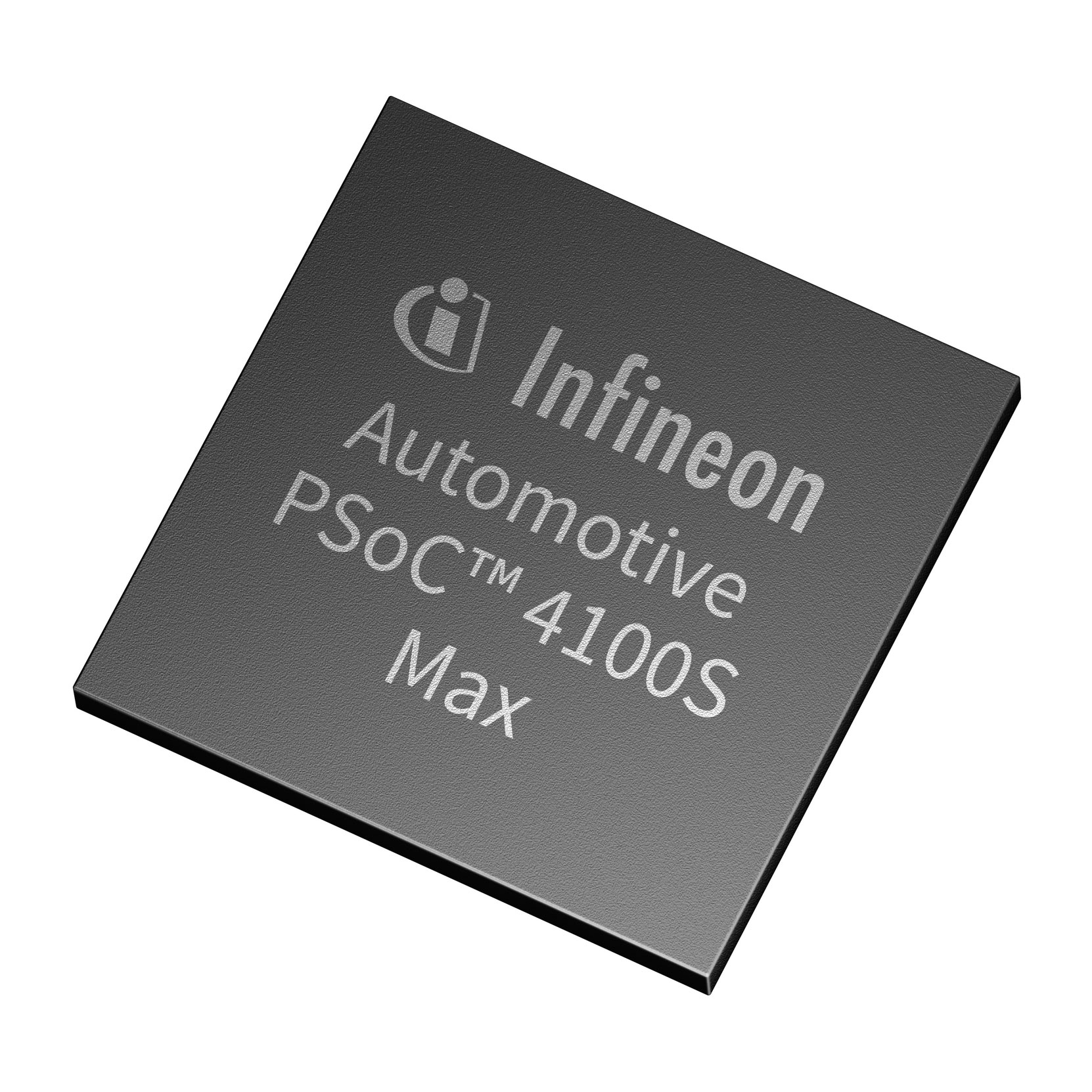

CY8C4149LDSS593XQLA1
IC MCU 32BIT 384KB FLASH 48VFQFNManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies PSOC™ 4 CY8C4100S series microcontroller, part number CY8C4149LDSS593XQLA1, features an ARM® Cortex®-M0+ core operating at 48MHz. This 32-bit device offers 384KB of FLASH program memory and 32KB of RAM, suitable for applications requiring efficient data processing and storage. Integrated peripherals include CapSense technology, DMA, multiple PWM channels, and a TRNG for secure operations. Connectivity options are extensive, supporting CANbus, I2C, SPI, UART/USART, and more. The CY8C4149LDSS593XQLA1 is housed in a 48-VFQFN exposed pad package, designed for surface mount applications with a wettable flank finish. Its operating temperature range is -40°C to 105°C, making it a robust choice for industrial automation, consumer electronics, and automotive systems. The device operates from a 1.71V to 5.5V supply.
Additional Information
Series: PSOC™ 4 CY8C4100SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Speed | 48MHz |
| Program Memory Size | 384KB (384K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 16x12b SAR |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Connectivity | CANbus, FIFO, I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, Crypto - AES, DMA, LCD, POR, PWM, SHA, Temp Sensor, TRNG, WDT |
| Supplier Device Package | 48-QFN (7x7) |
| Number of I/O | 40 |
