CY8C4147LQAS245XQSA1
IC MCU 32BIT 128KB FLASH 64VFQFNManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies PSOC™ 4 CY8C4100S Plus series microcontroller, part number CY8C4147LQAS245XQSA1, features an ARM® Cortex®-M0+ 32-bit core operating at up to 48MHz. This device offers 128KB of FLASH program memory and 16KB of RAM. It includes integrated peripherals such as DMA, POR, PWM, TRNG, and WDT, along with a Brown-out Detect/Reset function. Connectivity options include FIFO, I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, and UART/USART. The microcontroller is equipped with 16x10/16x12-bit SAR ADCs and 2x7-bit DACs. Designed for surface mounting with wettable flanks, it comes in a 64-VFQFN exposed pad package (9x9). This AEC-Q100 qualified component operates within a voltage range of 1.71V to 5.5V and is suitable for automotive applications.
Additional Information
Series: PSOC™ 4 CY8C4100S PlusRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Speed | 48MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 16x10/16x12b SAR; D/A 2x7b |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Connectivity | FIFO, I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, TRNG, WDT |
| Supplier Device Package | 64-QFN (9x9) |
| Grade | Automotive |
| Number of I/O | 54 |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy

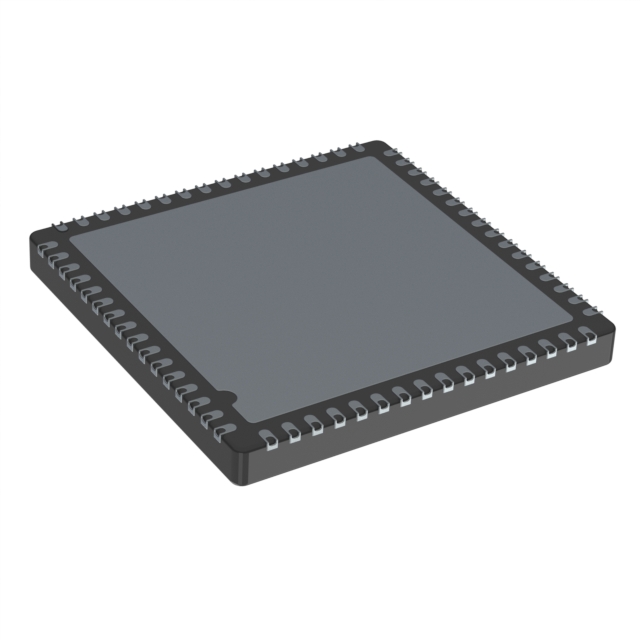

CY8C4126LQAS455XQSA1
