CY8C4014FNI-421T
IC MCU 32BIT 16KB FLASH 16WLCSPManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More

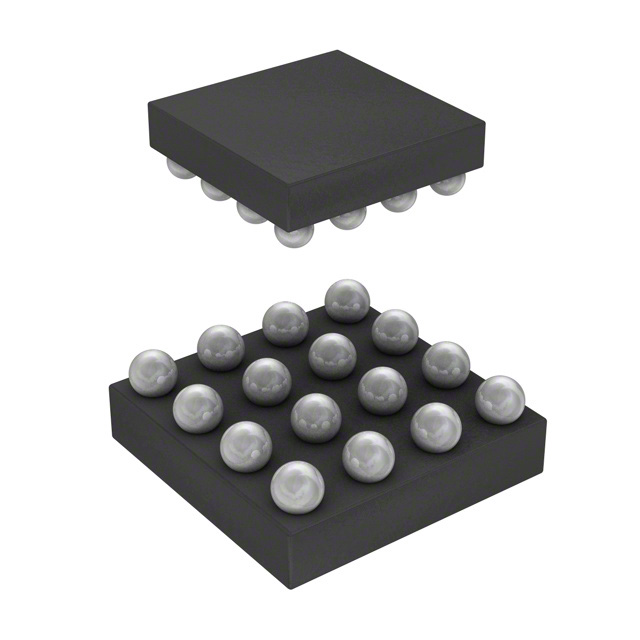

Infineon Technologies PSOC® 4 CY8C4000 series microcontroller, part number CY8C4014FNI-421T, features an ARM® Cortex®-M0 32-bit single-core processor operating at 16MHz. This device provides 16KB of FLASH program memory and 2KB of RAM, along with integrated 7-bit and 8-bit DACs. Connectivity options include I2C, and peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT are supported. The CY8C4014FNI-421T is housed in a compact 16-WLCSP (1.45x1.56) package, designed for surface mounting. It operates within a voltage range of 1.71V to 5.5V and an ambient temperature range of -40°C to 85°C. This component is commonly utilized in industrial automation, consumer electronics, and IoT applications. It is supplied on a Tape & Reel (TR) package.
Additional Information
Series: PSOC® 4 CY8C4000RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0 |
| Data Converters | D/A 1x7b, 1x8b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Connectivity | I2C |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 16-WLCSP (1.45x1.56) |
| Number of I/O | 12 |
| Programmable | Not Verified |
