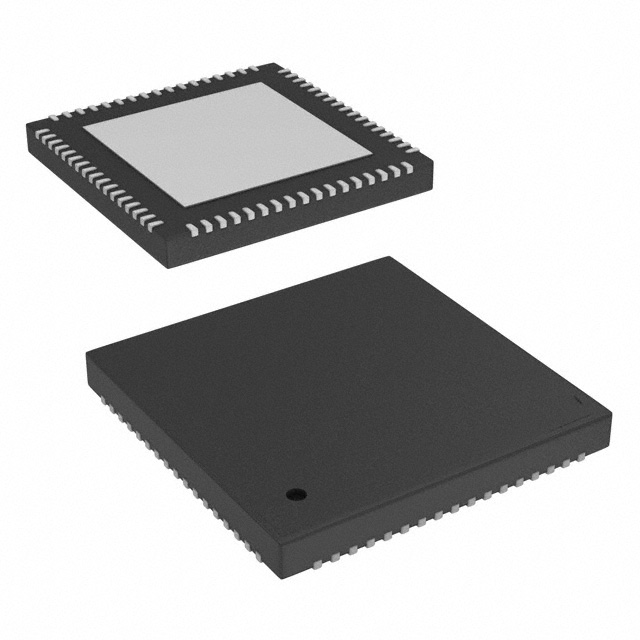

CY8C3666LTI-201
IC MCU 8BIT 64KB FLASH 68QFNManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies PSOC® 3 CY8C36xx series microcontroller, part number CY8C3666LTI-201. This 8-bit microcontroller features an 8051 core operating at 67MHz. It offers 64KB of FLASH program memory and 8KB of RAM, complemented by 2KB of EEPROM. Connectivity options include EBI/EMI, I2C, LINbus, SPI, and UART/USART. Peripherals such as CapSense, DMA, LCD, POR, PWM, and WDT are integrated. The device includes 16 channels of 12-bit A/D conversion and 2 channels of 8-bit D/A conversion. Supplied in a 68-QFN (8x8) package, this surface-mount component operates from 1.71V to 5.5V and is rated for -40°C to 85°C ambient temperatures. This component is utilized in industrial automation and consumer electronics applications.
Additional Information
Series: PSOC® 3 CY8C36xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 68-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 67MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | 8051 |
| Data Converters | A/D 16x12b; D/A 2x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, LINbus, SPI, UART/USART |
| Peripherals | CapSense, DMA, LCD, POR, PWM, WDT |
| Supplier Device Package | 68-QFN (8x8) |
| Number of I/O | 38 |
| Programmable | Not Verified |
