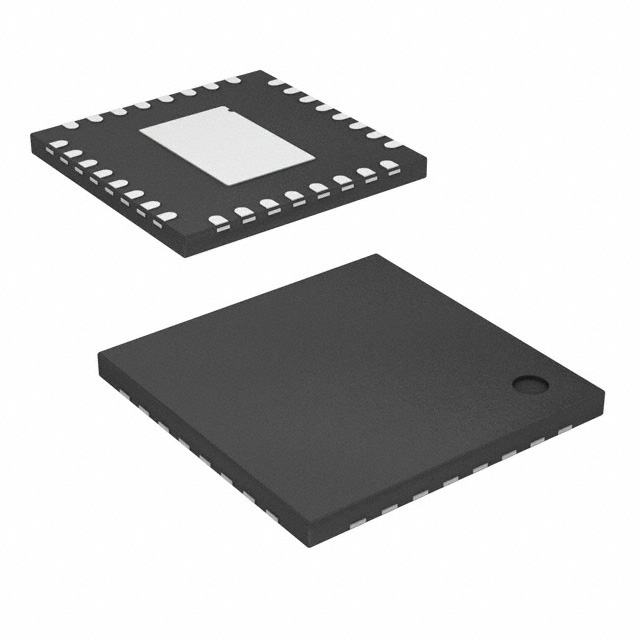

CY8C21434-24LCXI
IC MCU 8BIT 8KB FLASH 32QFNManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies PSoC®1 CY8C21xxx CY8C21434-24LCXI microcontroller features an 8-bit M8C core operating at 24MHz. This device offers 8KB of FLASH program memory and 512 bytes of RAM. Integrated peripherals include POR, PWM, and WDT. Connectivity options are supported via I2C, SPI, and UART/USART interfaces. The CY8C21434-24LCXI includes an 8-bit, 28-channel analog-to-digital converter. This surface mount component is housed in a 32-QFN (5x5) package with an exposed pad, suitable for applications in consumer electronics, industrial automation, and automotive systems. It operates within a voltage range of 2.4V to 5.25V and an extended temperature range of -40°C to 85°C.
Additional Information
Series: PSOC®1 CY8C21xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-XFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | M8C |
| Data Converters | A/D 28x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.25V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 32-QFN (5x5) |
| Number of I/O | 28 |
| Programmable | Not Verified |
