CY8C20334-12LQXI
IC MCU 8BIT 8KB FLASH 24SQFNManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More

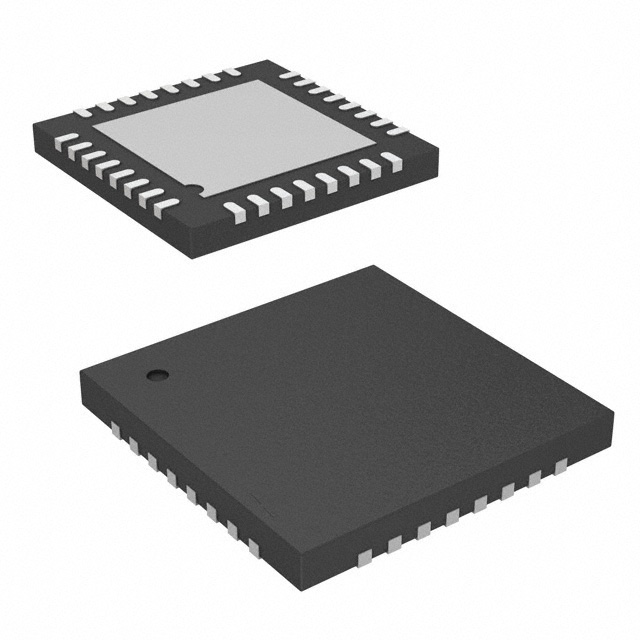

Infineon Technologies PSOC®1 CY8C20xxx microcontroller, part number CY8C20334-12LQXI, features an 8-bit M8C core operating at 12MHz. This device offers 8KB of FLASH program memory and 512 bytes of RAM. Integrated peripherals include LVD, POR, and WDT. Connectivity options are I2C and SPI. The microcontroller is housed in a 24-QFN (4x4) package, suitable for surface mounting. With 20 I/O pins and a supply voltage range of 2.4V to 5.25V, it is designed for applications in consumer electronics and industrial automation. The operating temperature range is -40°C to 85°C.
Additional Information
Series: PSOC®1 CY8C20xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 24-UFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 12MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | M8C |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.25V |
| Connectivity | I2C, SPI |
| Peripherals | LVD, POR, WDT |
| Supplier Device Package | 24-QFN (4x4) |
| Number of I/O | 20 |
| Programmable | Not Verified |
