CY7C60323-LFXC
IC MCU 8BIT 8KB FLASH 32QFNManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More
Infineon Technologies enCoRe™ III CY7C603xx series microcontroller, part number CY7C60323-LFXC. This 8-bit M8C core microcontroller operates at 12MHz and features 8KB of FLASH program memory. It includes 512 bytes of RAM and 28 general-purpose I/O pins. Connectivity options include I2C and SPI interfaces. On-chip peripherals consist of LVD, POR, PWM, and WDT. Data conversion is supported via 8x10-bit ADCs. The device operates from a 2.4V to 3.6V supply voltage and is available in a 32-QFN (5x5) surface mount package. Operating temperature range is 0°C to 70°C. This component is suitable for applications in consumer electronics and industrial control systems.
Additional Information
Series: enCoRe™ III CY7C603xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

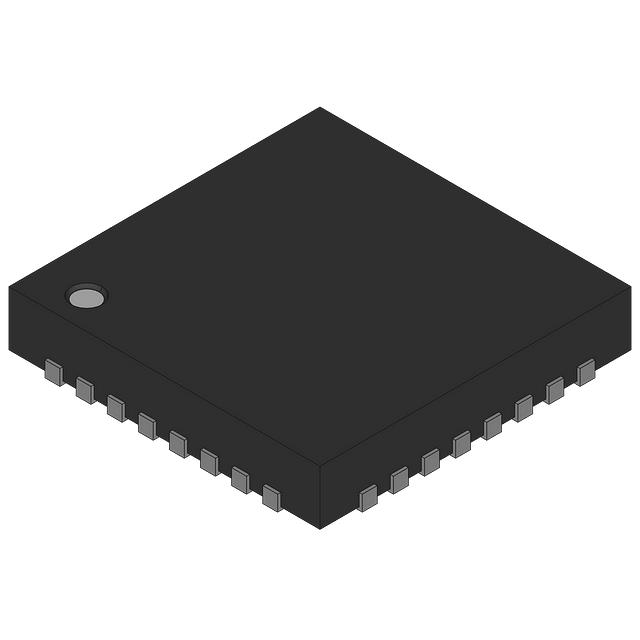

| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 12MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | M8C |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | I2C, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 32-QFN (5x5) |
| Number of I/O | 28 |
| Programmable | Not Verified |
