CY7C60223-SXC
IC MCU 8BIT 8KB FLASH 24SOICManufacturer: Infineon Technologies
Categories: Microcontrollers
Quality Control: Learn More

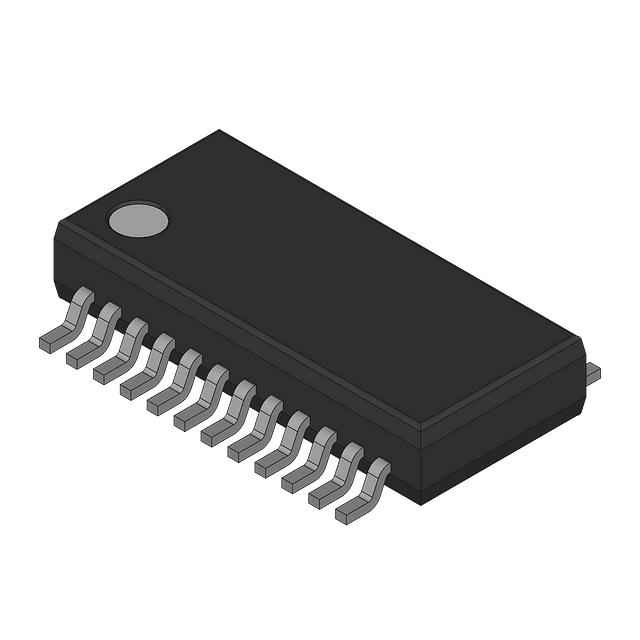

Infineon Technologies enCoRe™ II CY7C602xx series microcontroller, part number CY7C60223-SXC. This 8-bit M8C core microcontroller features 8KB of FLASH program memory and 256 bytes of RAM. Operating at a maximum speed of 12MHz, it includes an internal oscillator and 20 I/O pins. Connectivity options include SPI. Integrated peripherals encompass LVD, POR, and WDT. The component is housed in a 24-SOIC (0.295", 7.50mm Width) surface mount package. The operating temperature range is 0°C to 70°C (TA), with a supply voltage of 2.7V to 3.6V. This device is suitable for applications in consumer electronics and industrial automation.
Additional Information
Series: enCoRe™ II CY7C602xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Speed | 12MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | M8C |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | SPI |
| Peripherals | LVD, POR, WDT |
| Supplier Device Package | 24-SOIC |
| Number of I/O | 20 |
| Programmable | Not Verified |
