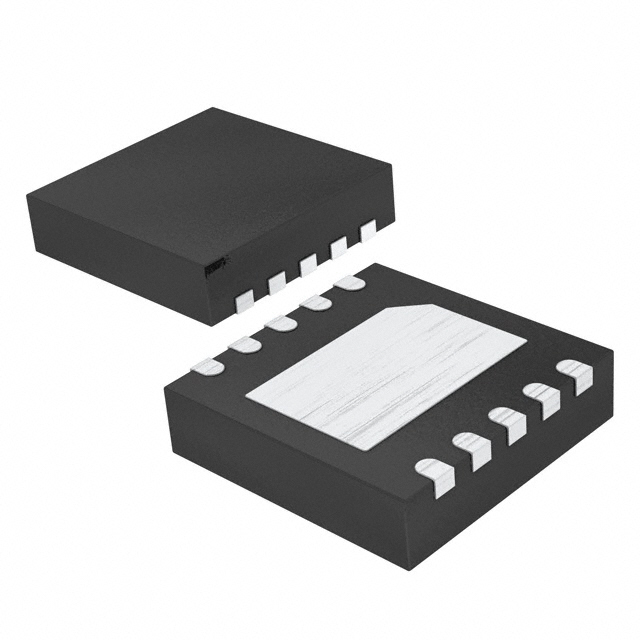

TLS810B1LDV33XUMA1
IC REG LINEAR 3.3V 100MA TSON-10Manufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Infineon Technologies OPTIREG™ TLS810B1LDV33XUMA1 is a positive, fixed 3.3V linear voltage regulator with an output current capability of 100mA. This AEC-Q100 qualified component features a low quiescent current of 10 µA and a supply current of a maximum 15 µA, making it suitable for power-sensitive automotive applications. Protection features include overcurrent and overtemperature shutdown, alongside an enable pin for control. The device boasts a high PSRR of 60dB at 100Hz and an input voltage range up to 42V. The voltage dropout is 0.65V at 100mA. Packaged in a PG-TSON-10 (10-TFDFN Exposed Pad) and supplied on tape and reel, this regulator is designed for surface mount applications and operates across an extended temperature range of -40°C to 150°C (TJ). It is commonly implemented in automotive systems for power management.
Additional Information
Series: OPTIREG™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 100mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 µA |
| Voltage - Input (Max) | 42V |
| Number of Regulators | 1 |
| Supplier Device Package | PG-TSON-10 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| Grade | Automotive |
| PSRR | 60dB (100Hz) |
| Voltage Dropout (Max) | 0.65V @ 100mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 15 µA |
| Qualification | AEC-Q100 |
