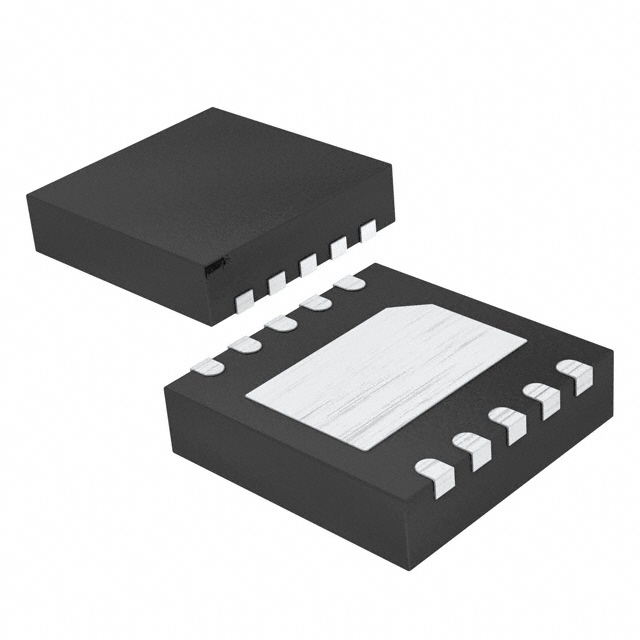

TLS810A1LDV33XUMA1
IC REG LIN 3.3V 100MA TSON-10-2Manufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Infineon Technologies OPTIREG™ TLS810A1LDV33XUMA1 is a AEC-Q100 qualified linear voltage regulator. This positive fixed output regulator provides a stable 3.3V with a maximum output current of 100mA. Designed for demanding automotive applications, it features low quiescent current of 10 µA and a low supply current of 15 µA. Protection mechanisms include over current and over temperature. The device exhibits a high PSRR of 60dB at 100Hz, crucial for noise-sensitive circuits. With a wide input voltage range up to 42V and a maximum dropout voltage of 0.65V at 100mA, this TSON-10-2 package component is suitable for power management in various automotive systems. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: OPTIREG™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount, Wettable Flank |
| Current - Output | 100mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 µA |
| Voltage - Input (Max) | 42V |
| Number of Regulators | 1 |
| Supplier Device Package | PG-TSON-10-2 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| Grade | Automotive |
| PSRR | 60dB (100Hz) |
| Voltage Dropout (Max) | 0.65V @ 100mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 15 µA |
| Qualification | AEC-Q100 |
