TLS805B1LDV50XUMA1
IC REG LINEAR 5V 50MA TSON-10Manufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Infineon Technologies OPTIREG™ TLS805B1LDV50XUMA1 is a positive fixed output linear voltage regulator. This AEC-Q100 qualified component provides a stable 5V output with a maximum current capability of 50mA. Designed for demanding automotive applications, it features a low quiescent current of 8µA and a supply current of only 12µA (max). The device offers over-current and over-temperature protection, and a dropout voltage of 0.35V at 50mA. Its high power supply rejection ratio (PSRR) of 55dB at 100Hz ensures excellent noise performance. The input voltage range extends up to 42V. This regulator is supplied in a PG-TSON-10 package, suitable for surface mount applications and available on tape and reel. The TLS805B1LDV50XUMA1 is utilized in various automotive subsystems requiring reliable voltage regulation.
Additional Information
Series: OPTIREG™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 89 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

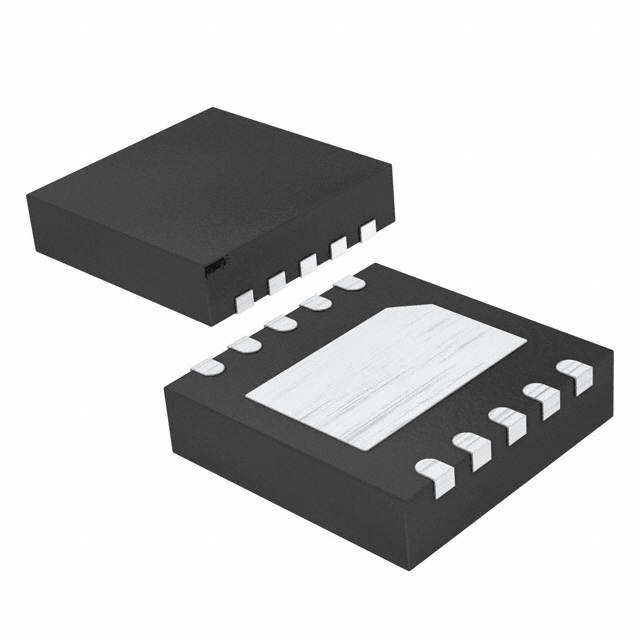

| Package / Case | 10-TFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 50mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 µA |
| Voltage - Input (Max) | 42V |
| Number of Regulators | 1 |
| Supplier Device Package | PG-TSON-10 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| Grade | Automotive |
| PSRR | 55dB (100Hz) |
| Voltage Dropout (Max) | 0.35V @ 50mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 12 µA |
| Qualification | AEC-Q100 |
