TLE72742DATMA1
IC REG LINEAR 5V 300MA TO252-3Manufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Infineon Technologies OPTIREG™ TLE72742DATMA1 is a positive fixed output linear voltage regulator IC. This AEC-Q100 qualified component delivers a stable 5V output with a maximum current capability of 300mA. Designed for demanding automotive applications, it features robust protection against over current, over temperature, and short circuits. The device exhibits a low quiescent current of 30 µA and a very low supply current of 40 µA. Its input voltage range extends up to 42V, with a typical dropout voltage of 0.5V at 200mA. The TLE72742DATMA1 offers a high power supply rejection ratio (PSRR) of 60dB at 100Hz, crucial for noise-sensitive automotive systems. Supplied in a PG-TO252-3 (TO-252-3, DPAK) surface-mount package on tape and reel, it is suitable for high-volume manufacturing environments. This component finds application in automotive power management systems and other automotive electronic control units.
Additional Information
Series: OPTIREG™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

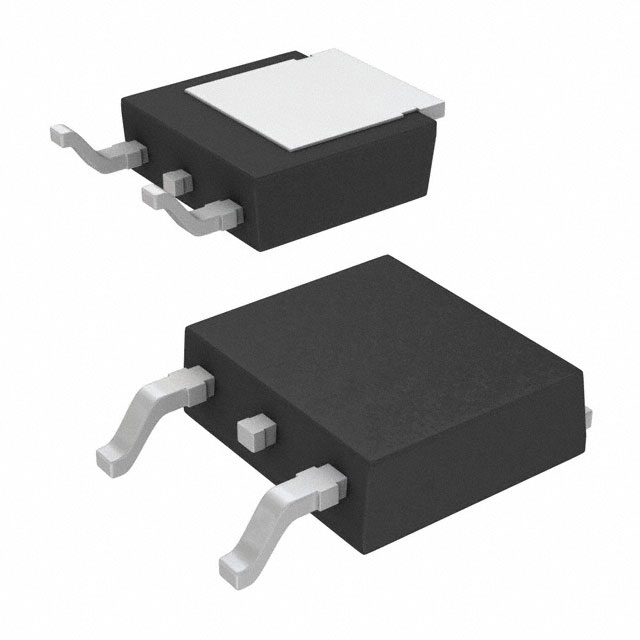

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 30 µA |
| Voltage - Input (Max) | 42V |
| Number of Regulators | 1 |
| Supplier Device Package | PG-TO252-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| Grade | Automotive |
| PSRR | 60dB (100Hz) |
| Voltage Dropout (Max) | 0.5V @ 200mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 40 µA |
| Qualification | AEC-Q100 |
