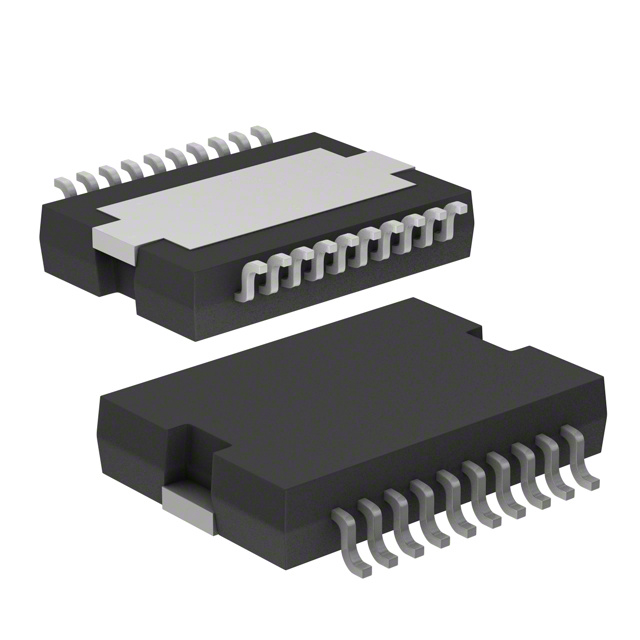

TLE4471GAUMA1
IC REG LINEAR POS ADJ DSO20-12Manufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable (Fixed) 3 Output 450mA, 50mA, 100mA PG-DSO-20-12
Additional Information
Series: OPTIREG™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-PowerSOIC (0.433"", 11.00mm Width) |
| Output Type | Adjustable (Fixed) |
| Mounting Type | Surface Mount |
| Current - Output | 450mA, 50mA, 100mA |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.8 mA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 3 |
| Supplier Device Package | PG-DSO-20-12 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V, Tracking |
| Control Features | Enable, Reset, Watchdog |
| Grade | Automotive |
| PSRR | 30dB (20Hz ~ 20kHz), 30dB (20hz ~ 20kHz), 30dB (20Hz ~ 20kHz) |
| Voltage Dropout (Max) | 0.55V @ 450mA, 0.6V @ 50mA, 0.6V @ 100mA |
| Protection Features | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit, Transient Voltage |
| Qualification | AEC-Q100 |
