TLE4276V50NKSA1
IC REG LINEAR 5V 400MA TO220-5-3Manufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Infineon Technologies OPTIREG™ TLE4276V50NKSA1 is a high-performance linear voltage regulator designed for demanding applications. This fixed 5V output device provides up to 400mA of current with a low dropout voltage of 0.5V at 250mA. Featuring robust protection circuitry including over current, over temperature, reverse polarity, and short circuit protection, it ensures reliable operation. The quiescent current is a mere 200 µA, making it suitable for power-sensitive designs. With an input voltage capability up to 40V and an operating temperature range of -40°C to 150°C, this AEC-Q100 qualified component is engineered for the automotive industry, as well as general industrial and consumer electronics where stable voltage regulation is critical. The PG-TO220-5-3 package with formed leads facilitates through-hole mounting.
Additional Information
Series: OPTIREG™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

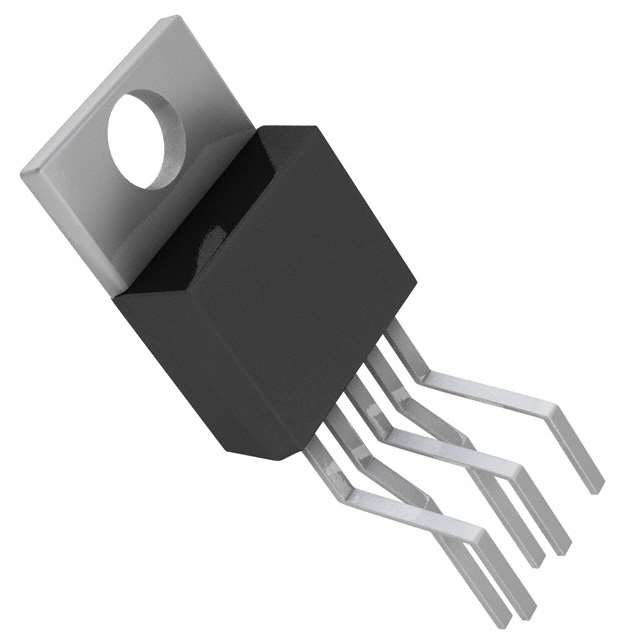

| Package / Case | TO-220-5 Formed Leads |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 200 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | PG-TO220-5-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Inhibit |
| Grade | Automotive |
| PSRR | 54dB (100Hz) |
| Voltage Dropout (Max) | 0.5V @ 250mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Current - Supply (Max) | 25 mA |
| Qualification | AEC-Q100 |
