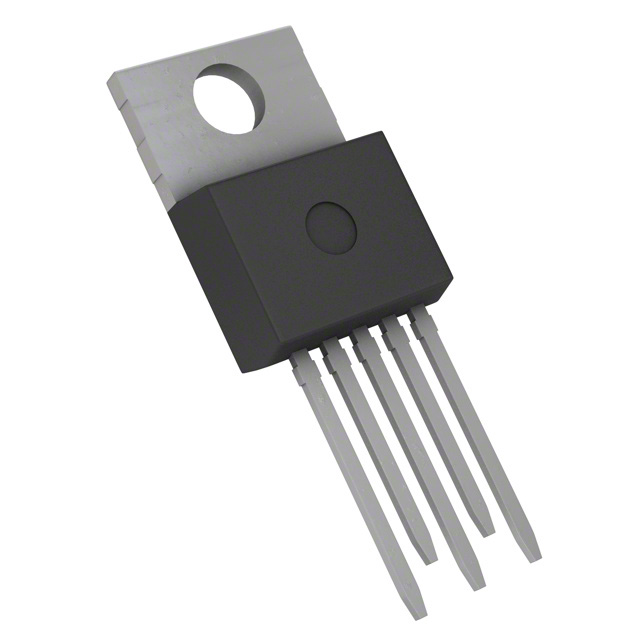

TLE4276SV50AKSA1
IC REG LIN 5V 400MA TO220-5-43Manufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Infineon Technologies OPTIREG™ TLE4276SV50AKSA1 is a positive, fixed 5V linear voltage regulator designed for automotive applications. This AEC-Q100 qualified component provides a stable output of 400mA and features a low quiescent current of 200 µA, making it suitable for power-sensitive designs. The device offers robust protection against over current, over temperature, reverse polarity, and short circuit conditions. With a wide input voltage range up to 40V and a dropout voltage of 0.5V at 250mA, it is well-suited for automotive power management systems, including body electronics and infotainment. The TLE4276SV50AKSA1 is supplied in a P-TO220-5-43 package and is available on Tape & Reel (TR). The regulator includes an inhibit control feature and exhibits a PSRR of 54dB at 100Hz.
Additional Information
Series: OPTIREG™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-220-5 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 200 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | P-TO220-5-43 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Inhibit |
| Grade | Automotive |
| PSRR | 54dB (100Hz) |
| Voltage Dropout (Max) | 0.5V @ 250mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Current - Supply (Max) | 25 mA |
| Qualification | AEC-Q100 |
