TLE4276GV10
IC REG LINEAR FIXED LDO REGManufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

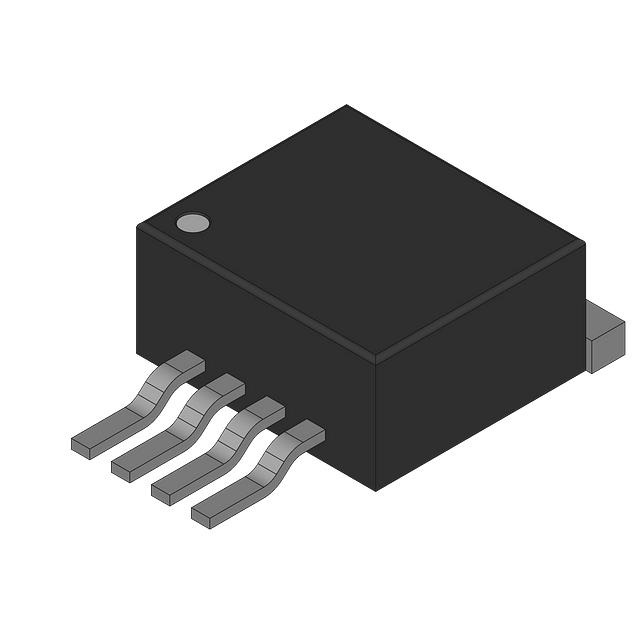

Linear Voltage Regulator IC Positive Fixed 1 Output 400mA PG-TO263-5-1
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 220 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | PG-TO263-5-1 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 10V |
| Control Features | Inhibit |
| Grade | Automotive |
| PSRR | 54dB (100Hz) |
| Voltage Dropout (Max) | 0.5V @ 250mA |
| Protection Features | Antisaturation, Over Temperature, Reverse Polarity, Short Circuit |
| Current - Supply (Max) | 25 mA |
| Qualification | AEC-Q100 |
