TLE42712AKSA1

IC REG LIN 5V 550MA TO220-7-11

Categories: Linear, Low Drop Out (LDO) Regulators

Quality Control: Learn More

Infineon Technologies OPTIREG™ TLE42712AKSA1 is a fixed 5V positive linear voltage regulator with a 550mA output current capability. This AEC-Q100 qualified component offers a low quiescent current of 6 µA and a maximum input voltage of 40V. Designed for automotive applications, it features robust protection mechanisms including over current, over temperature, over voltage, reverse polarity, and short circuit protection. The device also incorporates reset and watchdog control features, and boasts a Power Supply Rejection Ratio (PSRR) of 54dB at 100Hz. With a voltage dropout of 0.7V at 550mA, it is suitable for applications requiring efficient power management in demanding environments. The TLE42712AKSA1 is packaged in a P-TO220-7-11 format for through-hole mounting.

Additional Information

Series: OPTIREG™RoHS Status: RoHS non-compliantManufacturer Lead Time: 14 week(s)Product Status: ObsoletePackaging: Tube

Download Free CAD Model:

Technical Details:

Packaging	Tube

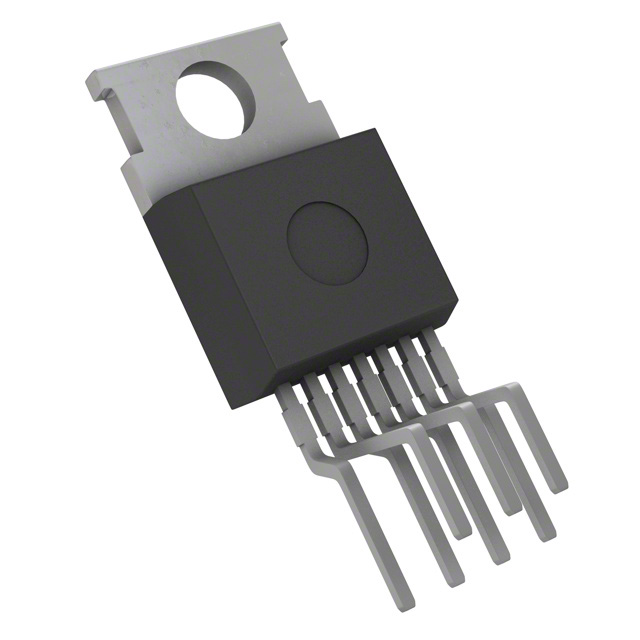

Package / Case	TO-220-7 Formed Leads
Output Type	Fixed
Mounting Type	Through Hole
Current - Output	550mA
Operating Temperature	-40°C ~ 150°C (TJ)
Output Configuration	Positive
Current - Quiescent (Iq)	6 µA
Voltage - Input (Max)	40V
Number of Regulators	1
Supplier Device Package	P-TO220-7-11
Voltage - Output (Max)	-
Voltage - Output (Min/Fixed)	5V
Control Features	Reset, Watchdog
Grade	Automotive
PSRR	54dB (100Hz)
Voltage Dropout (Max)	0.7V @ 550mA
Protection Features	Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Current - Supply (Max)	90 mA
Qualification	AEC-Q100
