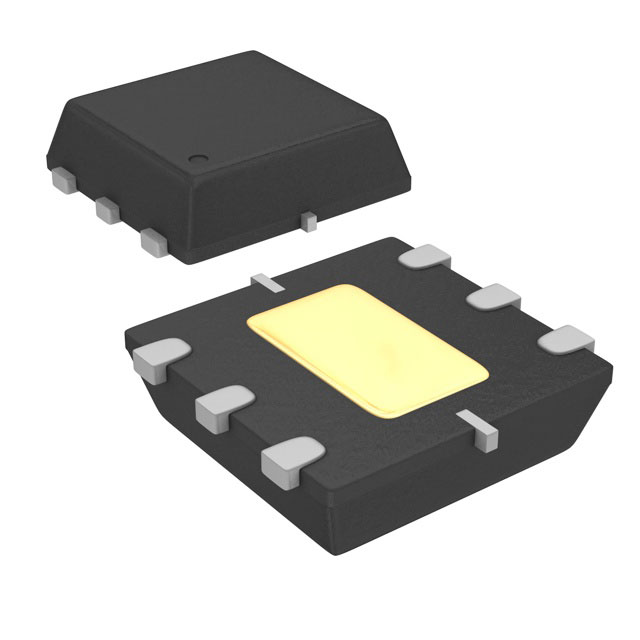

IRU1502-33CHTR
IC REG LINEAR 3.3V 1A 6MLPMManufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Infineon Technologies IRU1502-33CHTR is a positive fixed output linear voltage regulator IC. This component offers a stable 3.3V output with a maximum output current of 1A. The device features overcurrent and overtemperature protection, enhancing system reliability. With a quiescent current of 2mA and a PSRR of 55dB at 120Hz, it is suitable for applications requiring efficient power management. The input voltage range extends up to 6V, and the dropout voltage is specified at 3.3825V at 1A. Packaged in a compact 6-MLPM (3x3) surface-mount format, this regulator is commonly utilized in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 2 mA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-MLPM (3x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 3.3825V @ 1A |
| Protection Features | Over Current, Over Temperature |
