IRU1160CPTR
IC REG LIN POS ADJ 516-UTHINPAKManufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

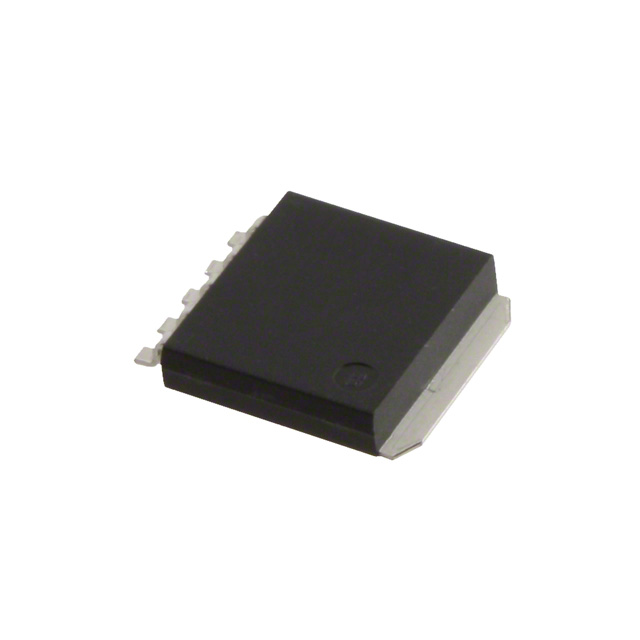

Infineon Technologies IRU1160CPTR is a positive adjustable linear voltage regulator with a 6A output current capability. This component, housed in a 516-Ultra Thin-Pak™ (TO-252-6, DPAK) surface-mount package, offers an adjustable output voltage ranging from 1.25V to 5.5V. With a maximum input voltage of 7V, it features over-current and over-temperature protection. The device exhibits a typical quiescent current of 10mA and a power supply rejection ratio (PSRR) of 70dB at 120Hz. The maximum voltage dropout is 1.3V at 6A. This regulator is suitable for applications in automotive and industrial sectors requiring robust voltage regulation.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 6A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | 516-Ultra Thin-Pak™ |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Control Features | - |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 1.3V @ 6A |
| Protection Features | Over Current, Over Temperature |
