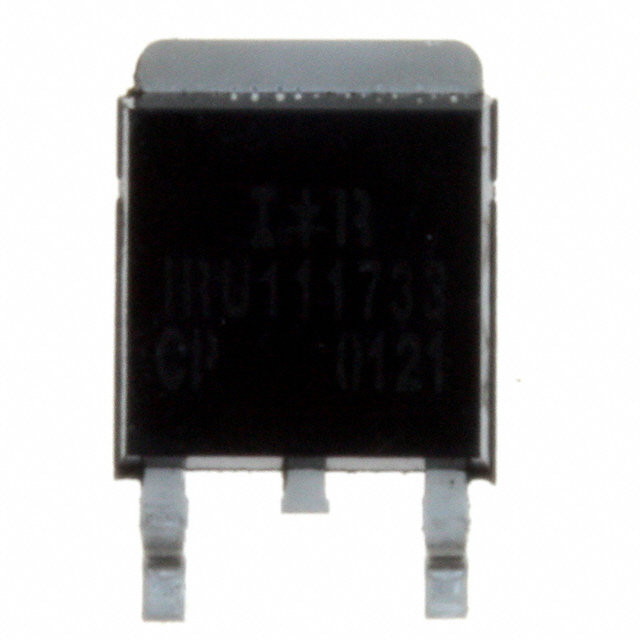

IRU1117-33CP
IC REG LIN 3.3V 800MA 2-UTHINPAKManufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Infineon Technologies IRU1117-33CP is a positive fixed linear voltage regulator IC. This component provides a stable 3.3V output with a maximum output current of 800mA. Designed for surface mount applications, it is supplied in a 2-Ultra Thin-Pak™ package. The IRU1117-33CP features over-current and over-temperature protection for enhanced reliability. Its high power supply rejection ratio (PSRR) of 70dB at 120Hz makes it suitable for noise-sensitive applications. The device operates within a temperature range of 0°C to 125°C and has a maximum input voltage of 7V. Dropout voltage is specified at a maximum of 1.3V at 1A. This regulator is commonly utilized in consumer electronics, industrial automation, and telecommunications equipment.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 2-Ultra Thin-Pak™ |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 800mA |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | 2-Ultra Thin-Pak |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Protection Features | Over Current, Over Temperature |
