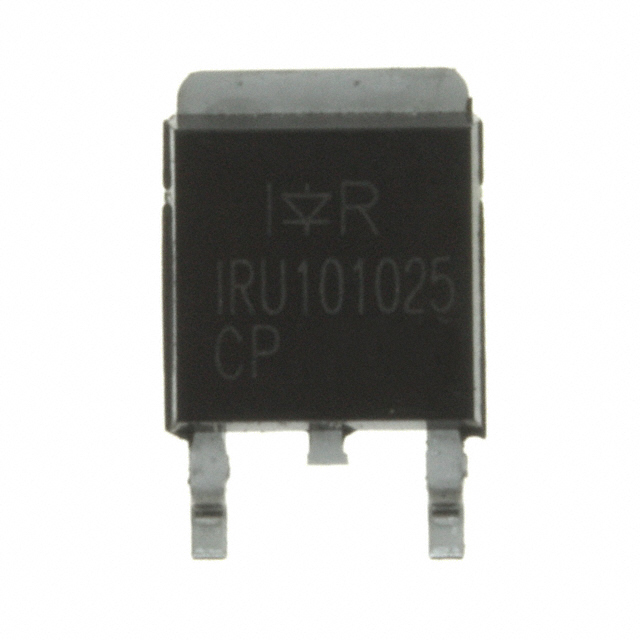

IRU1010-25CP
IC REG LIN 2.5V 1A 2ULTRA THINPKManufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Infineon Technologies IRU1010-25CP is a fixed, positive linear voltage regulator IC designed for efficiency and reliability. This component provides a stable 2.5V output with a maximum output current of 1A. Featuring a low dropout voltage of 1.3V at 1A, it is suitable for applications where input-output voltage differential is minimal. The IRU1010-25CP offers robust protection against over-current and over-temperature conditions, ensuring device longevity. Its high Power Supply Rejection Ratio (PSRR) of 70dB at 120Hz makes it ideal for noise-sensitive applications. The device operates within an ambient temperature range of 0°C to 125°C. Packaged in a 2-Ultra Thin-Pak™ for surface mounting, it finds application in automotive and industrial power management systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 2-Ultra Thin-Pak™ |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | 2-Ultra Thin-Pak |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V |
| Control Features | - |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Protection Features | Over Current, Over Temperature |
