IFX54441LDVXUMA1
IC REG LIN POS ADJ 300MA TSON-10Manufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Infineon Technologies IFX54441LDVXUMA1 is a positive adjustable linear voltage regulator designed for applications requiring up to 300mA output current. This device features an output voltage adjustable from 1.22V up to 20V, with a low dropout voltage of 0.4V at 300mA and a maximum input voltage of 20V. The regulator includes an enable pin for control, along with robust protection features including over current, over temperature, and reverse polarity protection. With a quiescent current of 60µA and a supply current of 12mA (max), it is suitable for power-sensitive designs. The high Power Supply Rejection Ratio (PSRR) of 65dB at 120Hz ensures clean output voltage. Supplied in a PG-TSON-10 package on tape and reel, the IFX54441LDVXUMA1 is typically employed in automotive, industrial, and consumer electronics where efficient and reliable voltage regulation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

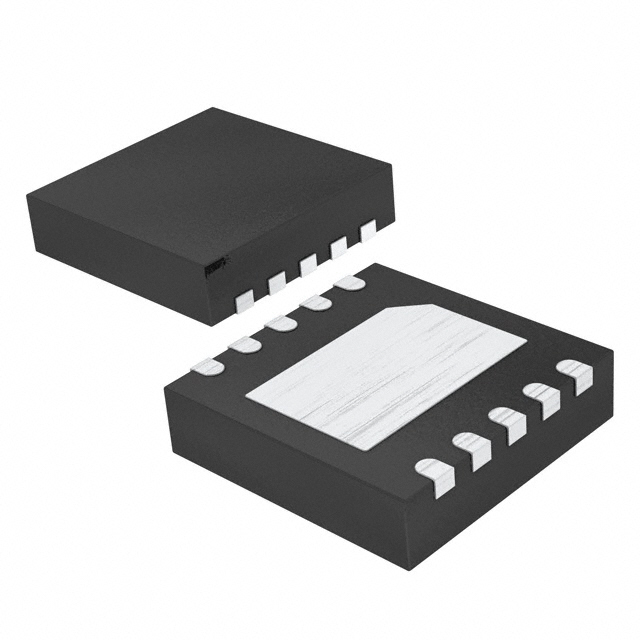

| Package / Case | 10-TFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 60 µA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | PG-TSON-10 |
| Voltage - Output (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Control Features | Enable |
| PSRR | 65dB (120Hz) |
| Voltage Dropout (Max) | 0.4V @ 300mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 12 mA |
