IFX1963TEVATMA1
IC REG LIN POS ADJ 1.5A TO252-5Manufacturer: Infineon Technologies
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Infineon Technologies IFX1963TEVATMA1 is an adjustable positive linear voltage regulator IC designed for high-current applications. Featuring a maximum output current of 1.5A and a low dropout voltage of 0.55V at 1.5A, this device is suitable for power management in automotive and industrial systems. The output voltage is adjustable from 1.21V up to 19.45V with a maximum input voltage of 20V. Integrated protection features include overcurrent, overtemperature, reverse polarity, and short-circuit protection. The regulator offers a quiescent current of 1.5mA and a supply current of 130mA (max). It includes an enable pin for control and exhibits a Power Supply Rejection Ratio (PSRR) of 67dB at 120Hz. The IFX1963TEVATMA1 is supplied in a PG-TO252-5-13 (TO-252-5, DPAK) surface-mount package, on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

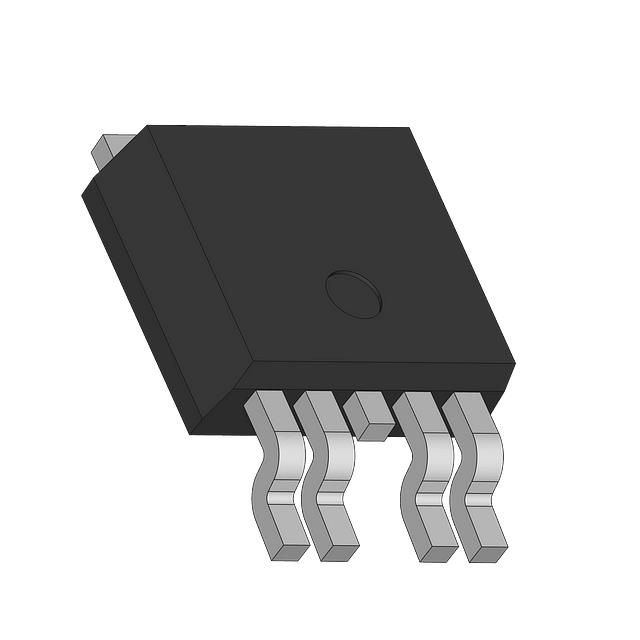

| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.5 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | PG-TO252-5-13 |
| Voltage - Output (Max) | 19.45V |
| Voltage - Output (Min/Fixed) | 1.21V |
| Control Features | Enable |
| PSRR | 67dB (120Hz) |
| Voltage Dropout (Max) | 0.55V @ 1.5A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Current - Supply (Max) | 130 mA |
