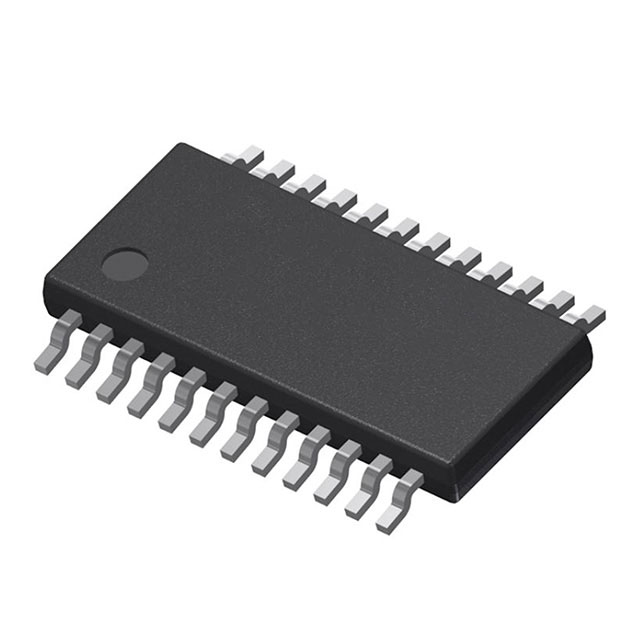

BTS712204ESAXUMA1
IC HID LAMP CNTRL 5MHZ 24TSSOPManufacturer: Infineon Technologies
Categories: Lighting, Ballast Controllers
Quality Control: Learn More
Infineon Technologies' BTS712204ESAXUMA1 is a high-side power switch designed for HID lamp control applications. This SPOC™ series component operates as a dedicated HID Lamp Controller with a switching frequency of 5MHz. It features integrated protection and diagnostic capabilities, essential for robust automotive lighting systems. The device supports a voltage supply range of 6V to 18V and offers output current capabilities of up to 3A sourcing and 5A sinking. Its PG-TSDSO-24 package, a 24-TSSOP with an exposed pad, is suitable for surface mounting and is supplied on tape and reel. Qualified to AEC-Q100 standards, this component is engineered for the demanding requirements of the automotive industry, including automotive lighting and ballast control systems. The supply current is rated at a low 80 µA.
Additional Information
Series: SPOC™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.154"", 3.90mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 5MHz |
| Type | HID Lamp Controller |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Supply | 6V ~ 18V |
| Supplier Device Package | PG-TSDSO-24 |
| Dimming | No |
| Current - Output Source/Sink | 3A, 5A |
| Grade | Automotive |
| Current - Supply | 80 µA |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy
BTS722204ESAXUMA1
IC HID LAMP CNTRL 5MHZ 24TSSOP
BTS710336ESPXUMA1
SPOC PG-TSDSO-24

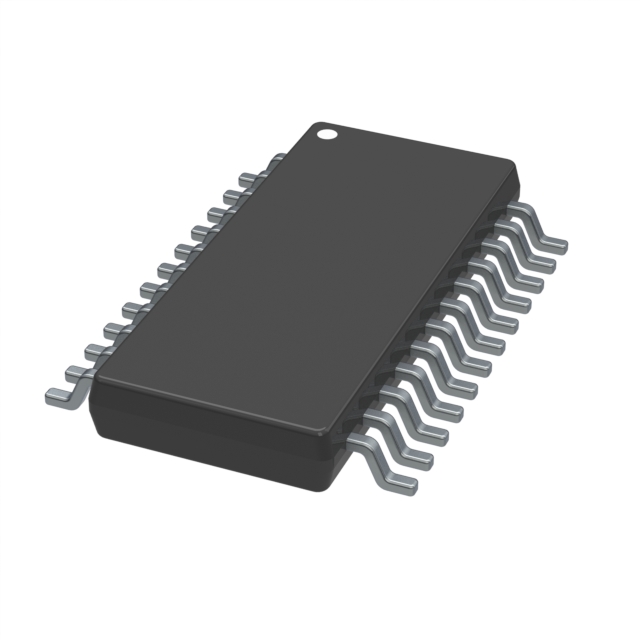

BTS712204ESPXUMA1
