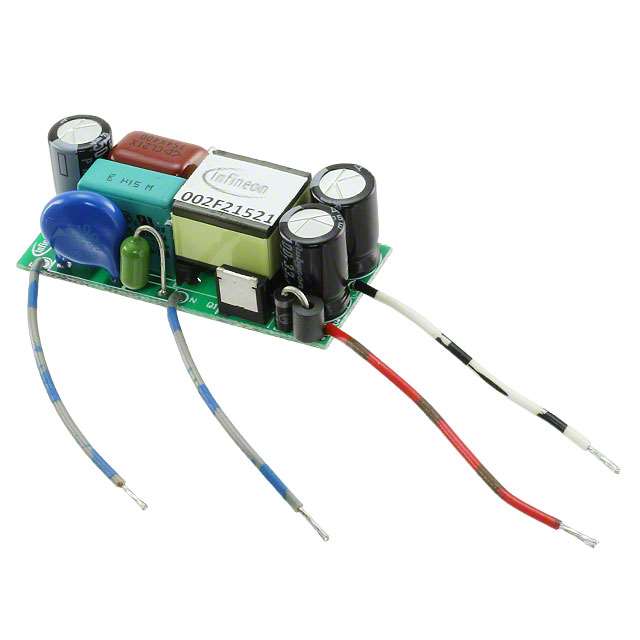

EVALLEDICL8201F2TOBO1
REFERENCE DESIGN ICL8201 T8Manufacturer: Infineon Technologies
Categories: LED Driver Evaluation Boards
Quality Control: Learn More
Infineon Technologies' EVALLEDICL8201F2TOBO1 is a CoolMOS™ series LED driver evaluation board, featuring the ICL8201 and IPS65R1K5CE. This reference design facilitates the evaluation of non-isolated output LED driver solutions for inputs ranging from 170 to 277 VAC. The board provides one non-isolated output with a voltage range of 55V to 75V and supports an output current of 270mA per channel. Applications for this component include general lighting, commercial lighting, and industrial lighting systems where efficient and reliable LED driving is critical. The evaluation board is supplied in a box.
Additional Information
Series: CoolMOS™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Voltage - Output | 55V ~ 75V |
| Voltage - Input | 170 ~ 277 VAC |
| Current - Output / Channel | 270mA |
| Utilized IC / Part | ICL8201, IPS65R1K5CE |
| Supplied Contents | Board(s) |
| Outputs and Type | 1 Non-Isolated Output |
