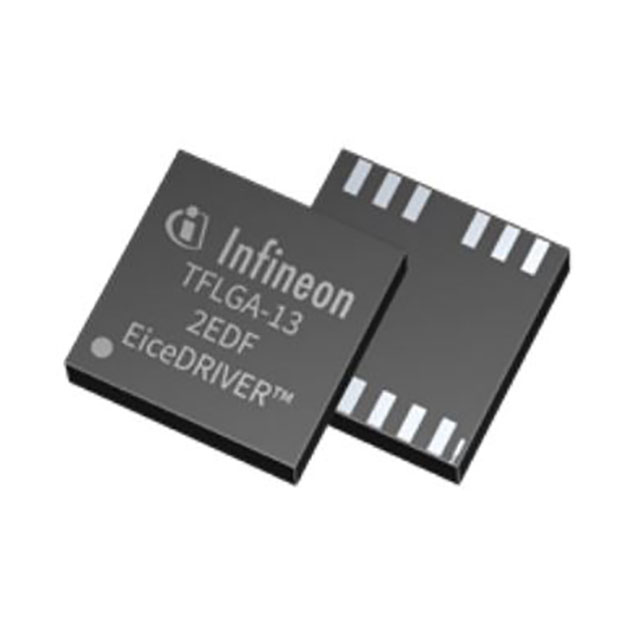

2EDB7259KXUMA1
DGTL ISO 2.5KV 2CH GT DVR 13LGAManufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
5A, 9A Gate Driver Magnetic Coupling 2500Vrms 2 Channel 13-LGA (5x5)
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 13-LGA |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | 5A, 9A |
| Technology | Magnetic Coupling |
| Current - Output High, Low | 9A, 5A |
| Voltage - Isolation | 2500Vrms |
| Approval Agency | UL |
| Supplier Device Package | 13-LGA (5x5) |
| Rise / Fall Time (Typ) | - |
| Common Mode Transient Immunity (Min) | 150V/ns |
| Propagation Delay tpLH / tpHL (Max) | 38ns, 38ns |
| Pulse Width Distortion (Max) | - |
| Grade | - |
| Number of Channels | 2 |
| Voltage - Output Supply | - |
| Qualification | - |
