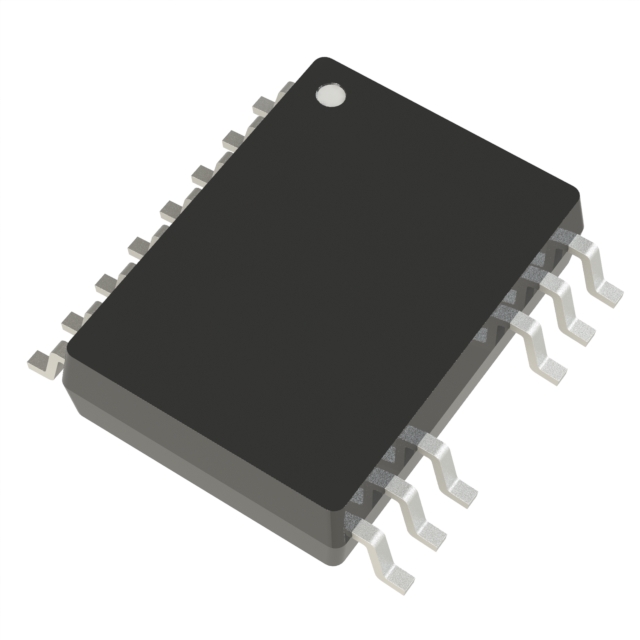

2ED3146MC12LXUMA1
2ED3146MC12LXUMA1Manufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
6A, 6.5A Gate Driver Capacitive Coupling 5700Vrms 2 Channel PG-DSO-14-71
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | 6A, 6.5A |
| Technology | Capacitive Coupling |
| Current - Output High, Low | 6A, 6.5A |
| Voltage - Isolation | 5700Vrms |
| Approval Agency | UL |
| Supplier Device Package | PG-DSO-14-71 |
| Rise / Fall Time (Typ) | 20ns, 20ns (Max) |
| Common Mode Transient Immunity (Min) | 200kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 40ns, 40ns |
| Pulse Width Distortion (Max) | - |
| Grade | - |
| Number of Channels | 2 |
| Voltage - Output Supply | 35V |
| Qualification | - |
