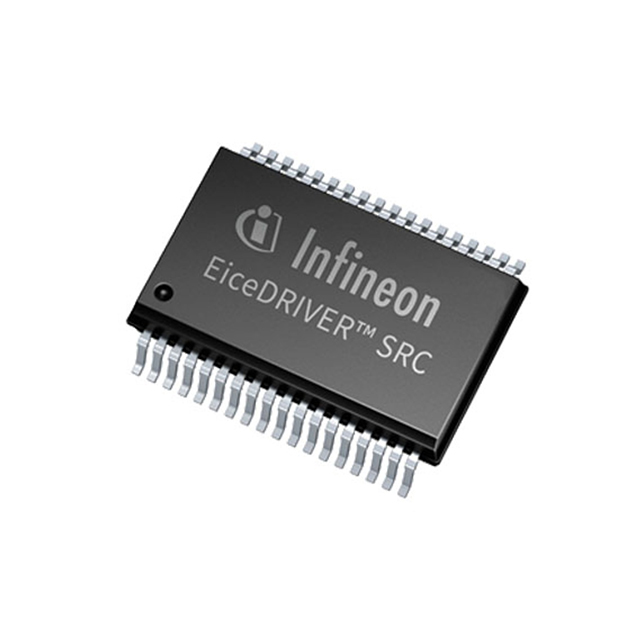

1EDU20I12SVXUMA1
DIGITAL ISO 5KV 1CH GATE DVRManufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Infineon Technologies EiceDRIVER™ 1EDU20I12SVXUMA1 is a single-channel gate driver utilizing magnetic coupling technology for robust isolation. This component provides 5000Vrms of isolation, ensuring reliable operation in high-voltage and electromagnetically noisy environments. Designed for surface mount applications, it supports a wide operating temperature range of -40°C to 125°C (TJ). The 1EDU20I12SVXUMA1 is suitable for demanding applications in power conversion, industrial automation, and electric vehicle powertrains where high isolation and precise gate control are critical. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | - |
| Technology | Magnetic Coupling |
| Current - Output High, Low | - |
| Voltage - Isolation | 5000Vrms |
| Rise / Fall Time (Typ) | - |
| Propagation Delay tpLH / tpHL (Max) | - |
| Pulse Width Distortion (Max) | - |
| Grade | - |
| Number of Channels | 1 |
| Qualification | - |
