1EDI30J12CPXUMA1
DIGITAL ISO 1CH GATE DVR DSO19-4Manufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More

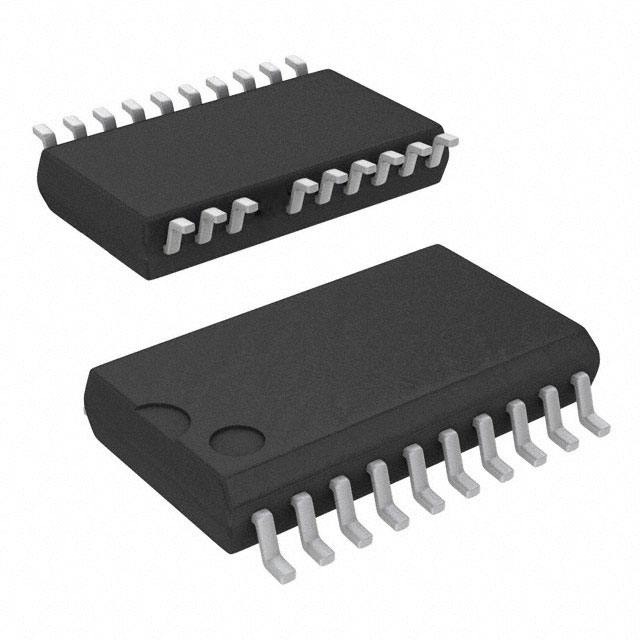

Infineon Technologies EiceDRIVER™ 1EDI30J12CPXUMA1 is a single-channel, magnetically coupled gate driver in a PG-DSO-19-4 package. This component provides robust isolation and is designed for high-side or low-side driving applications. It delivers a symmetrical 4A output current for both high and low states, with typical rise and fall times of 23ns and 22ns respectively. The device operates from a supply voltage range of 4.75V to 17.5V and is qualified for operation across a wide temperature range of -40°C to 150°C (TJ). Its surface mount configuration, utilizing a 20-SOIC (0.295", 7.50mm Width) case with 19 leads, facilitates integration into compact designs. This gate driver is suitable for applications in power conversion, motor control, and industrial automation. The 1EDI30J12CPXUMA1 is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width), 19 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | - |
| Technology | Magnetic Coupling |
| Current - Output High, Low | 4A, 4A |
| Supplier Device Package | PG-DSO-19-4 |
| Rise / Fall Time (Typ) | 23ns, 22ns |
| Propagation Delay tpLH / tpHL (Max) | - |
| Pulse Width Distortion (Max) | - |
| Grade | - |
| Number of Channels | 1 |
| Voltage - Output Supply | 4.75V ~ 17.5V |
| Qualification | - |
