1EDI3033ASXUMA1

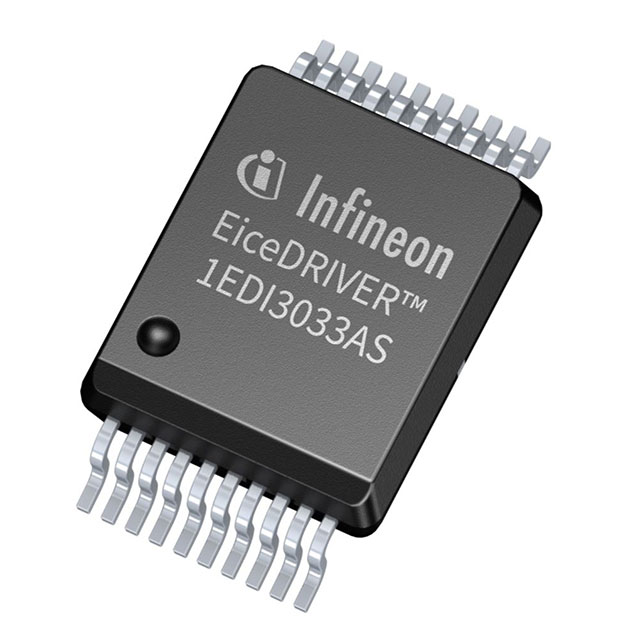

DGT ISO 5.7KV 1CH GT DVR DSO20Manufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Infineon Technologies EiceDRIVER™ 1EDI3033ASXUMA1 is a single-channel, 12A gate driver featuring magnetic coupling technology for robust isolation. This AEC-Q100 qualified component provides 5700Vrms of isolation and boasts a high Common Mode Transient Immunity (CMTI) of 150kV/µs. Optimized for demanding applications, it delivers symmetrical 12A peak output current with typical rise and fall times of 55ns and 45ns respectively. The part exhibits a maximum propagation delay of 120ns and pulse width distortion of 20ns, ensuring precise switching control. Operating from a 3V to 5.5V supply, this automotive-grade device is presented in a 20-BFSOP (PG-DSO-20-91) surface-mount package, supplied on tape and reel. It is utilized in automotive and industrial power electronics, including electric vehicle powertrains and motor control. Approvals include UL and VDE.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 89 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-BFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | 12A |
| Technology | Magnetic Coupling |
| Current - Output High, Low | 12A, 12A |
| Voltage - Isolation | 5700Vrms |
| Approval Agency | UL, VDE |
| Supplier Device Package | PG-DSO-20-91 |
| Rise / Fall Time (Typ) | 55ns, 45ns (Max) |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 120ns, 120ns |
| Pulse Width Distortion (Max) | 20ns |
| Grade | Automotive |
| Number of Channels | 1 |
| Voltage - Output Supply | 3V ~ 5.5V |
| Qualification | AEC-Q100 |
