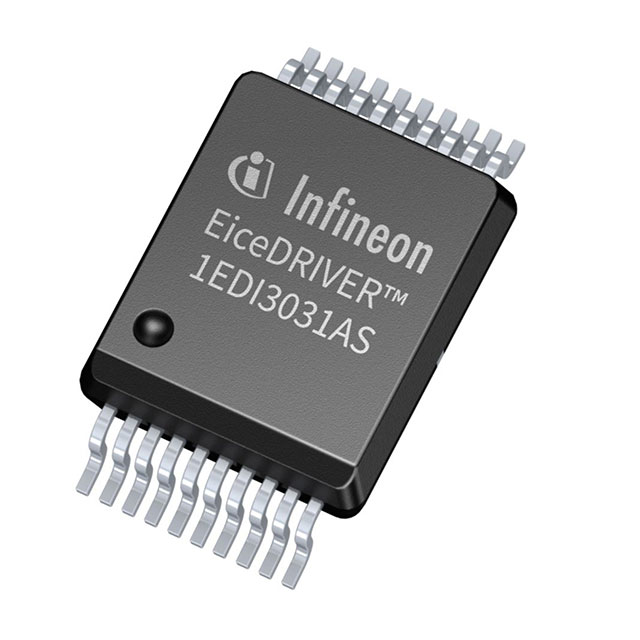

1EDI3031ASXUMA1
DGT ISO 5.7KV 1CH GT DVR DSO20Manufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Infineon Technologies EICE DRIVER™ 1EDI3031ASXUMA1 is a single-channel, 12A gate driver utilizing magnetic coupling technology. This component boasts an impressive 5700Vrms isolation voltage and a high common mode transient immunity of 150kV/µs, ensuring robust performance in demanding environments. Designed for surface mount applications within a 20-BFSOP (PG-DSO-20-91) package, it operates across a temperature range of -40°C to 150°C. Key specifications include output currents of 20A high/low and 12A peak, with typical rise and fall times of 55ns and 45ns respectively, and a maximum propagation delay of 120ns. Qualification to AEC-Q100 and approvals from UL and VDE underscore its suitability for automotive applications. This device is engineered for high-power switching applications, including electric vehicle powertrains and industrial motor control.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 89 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-BFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | 12A |
| Technology | Magnetic Coupling |
| Current - Output High, Low | 20A, 20A |
| Voltage - Isolation | 5700Vrms |
| Approval Agency | UL, VDE |
| Supplier Device Package | PG-DSO-20-91 |
| Rise / Fall Time (Typ) | 55ns, 45ns (Max) |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 120ns, 120ns |
| Pulse Width Distortion (Max) | 20ns |
| Grade | Automotive |
| Number of Channels | 1 |
| Voltage - Output Supply | 3V ~ 5.5V |
| Qualification | AEC-Q100 |
