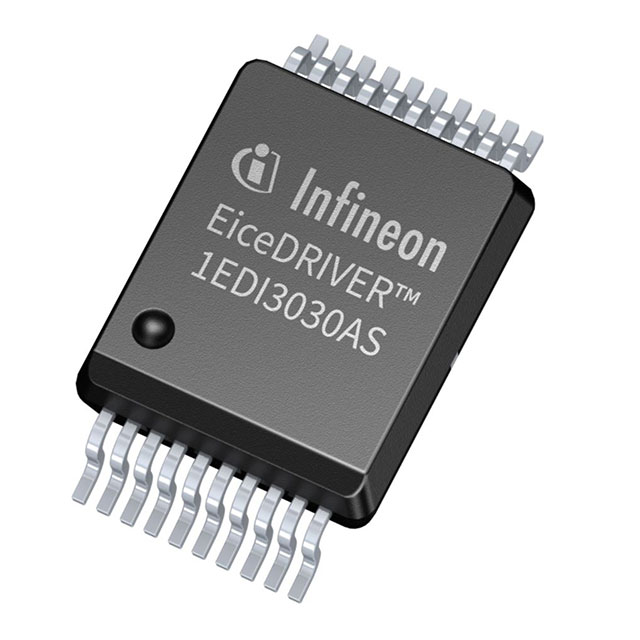

1EDI3030ASXUMA1
DGT ISO 5.7KV 1CH GT DVR DSO20Manufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Infineon Technologies EICEDRIVER™ 1EDI3030ASXUMA1 is a single-channel, 12A gate driver utilizing magnetic coupling technology. This component offers robust isolation with a 5700Vrms rating and high common-mode transient immunity of 150kV/µs. Designed for demanding applications, it features output high and low currents of 12A, with typical rise and fall times of 55ns and 45ns respectively, and a maximum propagation delay of 120ns. The 1EDI3030ASXUMA1 is AEC-Q100 qualified and meets automotive grade requirements. It is supplied in a 20-pin PG-DSO-20-91 (20-BFSOP) package for surface mounting and is delivered on tape and reel (TR). Approvals include UL and VDE. This gate driver is suitable for use in automotive powertrain, industrial motor drives, and renewable energy systems.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 89 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-BFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | 12A |
| Technology | Magnetic Coupling |
| Current - Output High, Low | 12A, 12A |
| Voltage - Isolation | 5700Vrms |
| Approval Agency | UL, VDE |
| Supplier Device Package | PG-DSO-20-91 |
| Rise / Fall Time (Typ) | 55ns, 45ns (Max) |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 120ns, 120ns |
| Pulse Width Distortion (Max) | 20ns |
| Grade | Automotive |
| Number of Channels | 1 |
| Voltage - Output Supply | 3V ~ 5.5V |
| Qualification | AEC-Q100 |
