1EDI3020ASXUMA1

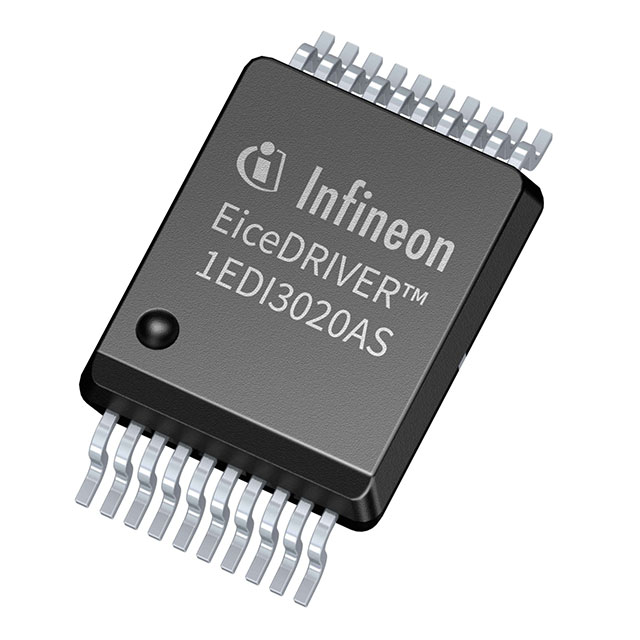

DGT ISO 5.7KV 1CH GT DVR DSO20Manufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Infineon Technologies EiceDRIVER™ 1EDI3020ASXUMA1 is a single-channel, 12A gate driver featuring magnetic coupling technology for robust isolation. This device offers 5700Vrms isolation voltage and a common-mode transient immunity (CMTI) of 150kV/µs, making it suitable for high-voltage applications. The PG-DSO-20-91 package, a 20-pin wide body BFSOP, supports surface mounting. Key performance characteristics include a maximum propagation delay of 120ns and pulse width distortion of 20ns, with typical rise and fall times of 55ns and 45ns, respectively. Designed for demanding environments, it operates from -40°C to 150°C and is AEC-Q100 qualified, with UL and VDE approvals. This component is widely utilized in automotive power systems, industrial motor drives, and power supply applications where high isolation and reliable gate driving are critical. The output supply voltage ranges from 3V to 5.5V.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 89 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-BFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | 12A |
| Technology | Magnetic Coupling |
| Current - Output High, Low | 12A, 12A |
| Voltage - Isolation | 5700Vrms |
| Approval Agency | UL, VDE |
| Supplier Device Package | PG-DSO-20-91 |
| Rise / Fall Time (Typ) | 55ns, 45ns (Max) |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 120ns, 120ns |
| Pulse Width Distortion (Max) | 20ns |
| Grade | Automotive |
| Number of Channels | 1 |
| Voltage - Output Supply | 3V ~ 5.5V |
| Qualification | AEC-Q100 |
