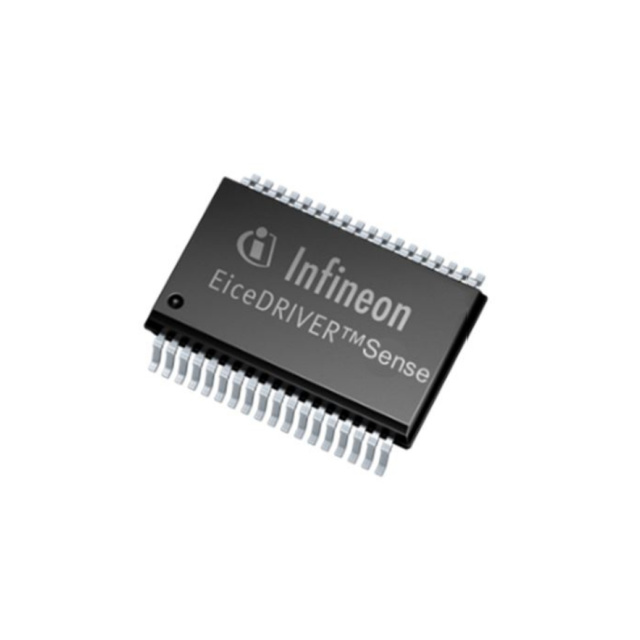

1EDI20I12SVXUMA1
DIGITAL ISO 5KV 1CH GATE DVRManufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Infineon Technologies 1EDI20I12SVXUMA1, a single-channel gate driver from the EiceDRIVER™ series, utilizes magnetic coupling technology for robust isolation. This component provides 5000Vrms of isolation, making it suitable for demanding applications in industrial automation, electric vehicle powertrains, and renewable energy systems. Its surface mount configuration and Tape & Reel packaging facilitate efficient assembly on printed circuit boards. The 1EDI20I12SVXUMA1 operates across a temperature range of -40°C to 125°C (TJ), ensuring reliable performance in diverse environmental conditions. This solution is engineered for high-voltage switching applications requiring precise gate control and superior galvanic isolation between the control and power stages.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | - |
| Technology | Magnetic Coupling |
| Current - Output High, Low | - |
| Voltage - Isolation | 5000Vrms |
| Rise / Fall Time (Typ) | - |
| Propagation Delay tpLH / tpHL (Max) | - |
| Pulse Width Distortion (Max) | - |
| Grade | - |
| Number of Channels | 1 |
| Qualification | - |
