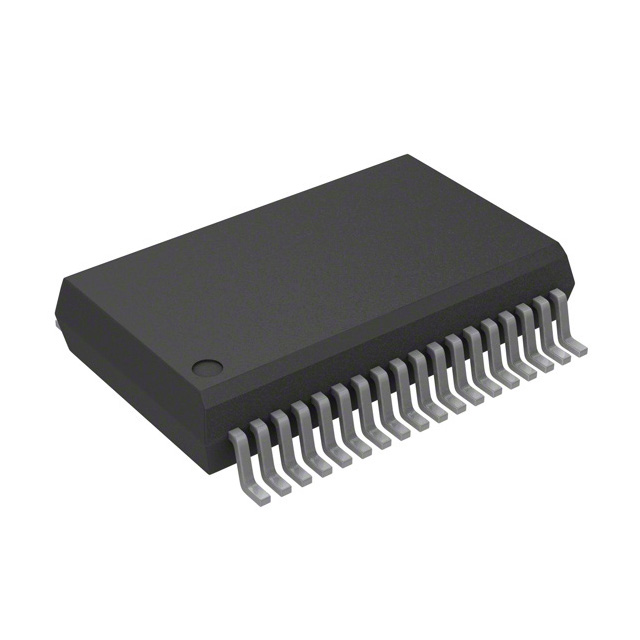

1EDI2002ASXUMA2
DGT ISO 3.75KV 1CH GT DVR DSO36Manufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Infineon Technologies EICE DRIVER™ 1EDI2002ASXUMA2 is a single-channel, magnetically coupled gate driver designed for high-voltage applications. This component provides robust isolation with a rated voltage of 3750Vrms, making it suitable for demanding automotive and industrial power electronics systems. It features a symmetrical 1A source and sink capability, with typical rise and fall times of 30ns and 60ns respectively. The 1EDI2002ASXUMA2 operates with an output supply voltage range of 13V to 18V and is qualified to AEC-Q100 standards, ensuring reliability in automotive environments. The device is supplied in a PG-DSO-36-63 package for surface mounting, presented on tape and reel. Its advanced magnetic coupling technology enables efficient and reliable switching of power transistors in applications such as electric vehicle powertrains and industrial motor control.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | - |
| Technology | Magnetic Coupling |
| Current - Output High, Low | 1A, 1A |
| Voltage - Isolation | 3750Vrms |
| Supplier Device Package | PG-DSO-36-63 |
| Rise / Fall Time (Typ) | 30ns, 60ns |
| Propagation Delay tpLH / tpHL (Max) | - |
| Pulse Width Distortion (Max) | - |
| Grade | Automotive |
| Number of Channels | 1 |
| Voltage - Output Supply | 13V ~ 18V |
| Qualification | AEC-Q100 |
