1EDF5673KXUMA1

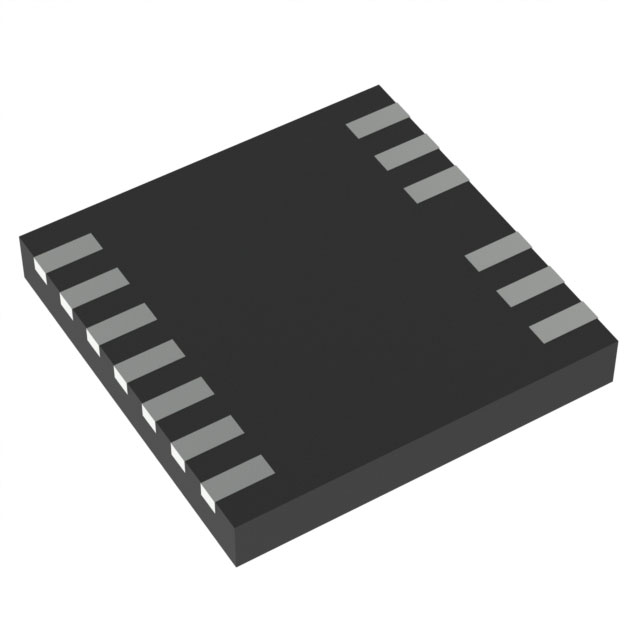

DGT ISO 1.5KV 1CH GT DVR TFLGA13Manufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Infineon Technologies EiceDRIVER™ 1EDF5673KXUMA1 is a single-channel, 1500VDC isolated gate driver utilizing magnetic coupling technology. This component offers robust performance with a minimum common mode transient immunity of 150V/ns, ensuring reliable operation in noisy environments. It provides output drive currents of 4A high and 8A low, with typical rise and fall times of 6.5ns and 4.5ns respectively. The maximum propagation delay is 44ns for both tpLH and tpHL, and pulse width distortion is 18ns typically. The device operates within a temperature range of -40°C to 85°C and is housed in a 13-TFLGA package (PG-TFLGA-13-1) suitable for surface mounting. Approvals include CQC, CSA, UL, and VDE. This gate driver is well-suited for applications in industrial power supplies, motor control, and renewable energy systems requiring high voltage isolation.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 13-TFLGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | - |
| Technology | Magnetic Coupling |
| Current - Output High, Low | 4A, 8A |
| Voltage - Isolation | 1500VDC |
| Approval Agency | CQC, CSA, UL, VDE |
| Supplier Device Package | PG-TFLGA-13-1 |
| Rise / Fall Time (Typ) | 6.5ns, 4.5ns |
| Common Mode Transient Immunity (Min) | 150V/ns |
| Propagation Delay tpLH / tpHL (Max) | 44ns, 44ns |
| Pulse Width Distortion (Max) | 18ns (Typ) |
| Grade | - |
| Number of Channels | 1 |
| Voltage - Output Supply | 3.13V ~ 3.47V |
| Qualification | - |
