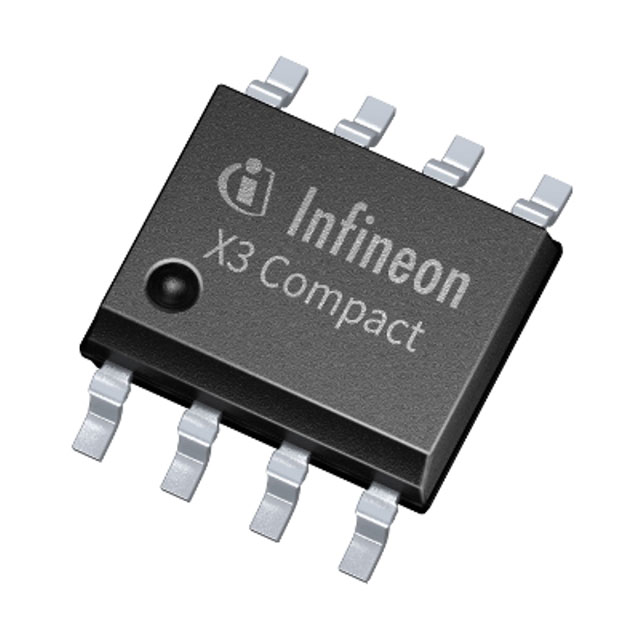

1ED3127MU12FXUMA1
DGTL ISO 3KV 1CH GT DVR DSO8-72Manufacturer: Infineon Technologies
Categories: Isolators - Gate Drivers
Quality Control: Learn More
10A Gate Driver Magnetic Coupling 3000Vrms 1 Channel PG-DSO-8-72
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | 10A |
| Technology | Magnetic Coupling |
| Current - Output High, Low | 4A, 4A |
| Voltage - Isolation | 3000Vrms |
| Approval Agency | - |
| Supplier Device Package | PG-DSO-8-72 |
| Rise / Fall Time (Typ) | 30ns, 30ns (Max) |
| Common Mode Transient Immunity (Min) | 200kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 5ns |
| Grade | - |
| Number of Channels | 1 |
| Voltage - Output Supply | 10V ~ 35V |
| Qualification | - |
