IM240M6Z1BALMA1
IGBT MODULE 600V 8.9W 23SOPManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
The Infineon Technologies IM240M6Z1BALMA1 is a three-phase inverter IGBT module from the IM240-M6, CIPOS™ series. This component features a 600 V collector-emitter breakdown voltage and a maximum power dissipation of 8.9 W. It is designed for surface mount applications within a 23-SOP package, utilizing gull wing leads for robust assembly. The module incorporates an NTC thermistor for thermal monitoring. Key electrical specifications include a Vce(on) of 2.6V at 15V Vge and 4A Ic, and a collector cutoff current of 40 µA. Operating across a temperature range of -40°C to 125°C, this IGBT module is suitable for power electronics applications in industries such as industrial automation, motor drives, and renewable energy systems. The device is supplied in tube packaging.
Additional Information
Series: IM240-M6, CIPOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 23-PowerSMD Module, Gull Wing |
| Mounting Type | Surface Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 125°C |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 4A |
| NTC Thermistor | Yes |
| Supplier Device Package | 23-SOP |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 8.9 W |
| Current - Collector Cutoff (Max) | 40 µA |
Request a Quote
Clients Also Buy

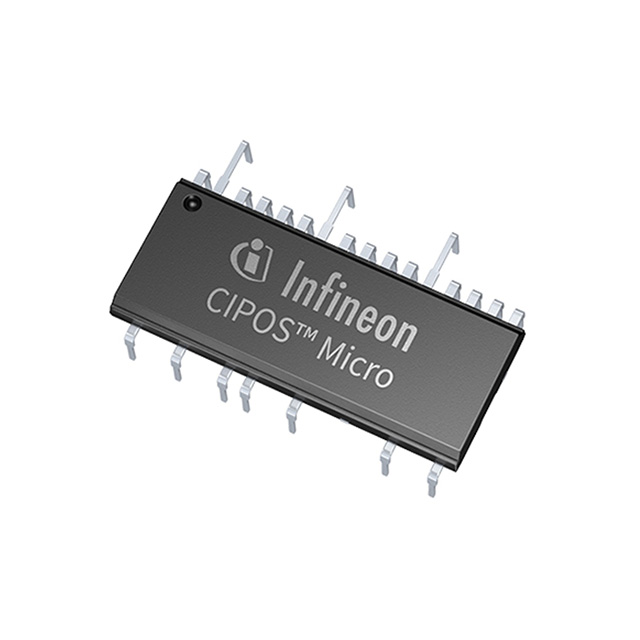

IM240M6Y2BAKMA1
