FZ825R33HE4DBPSA1
HV B SINGLE SWITCH POWER MODULESManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

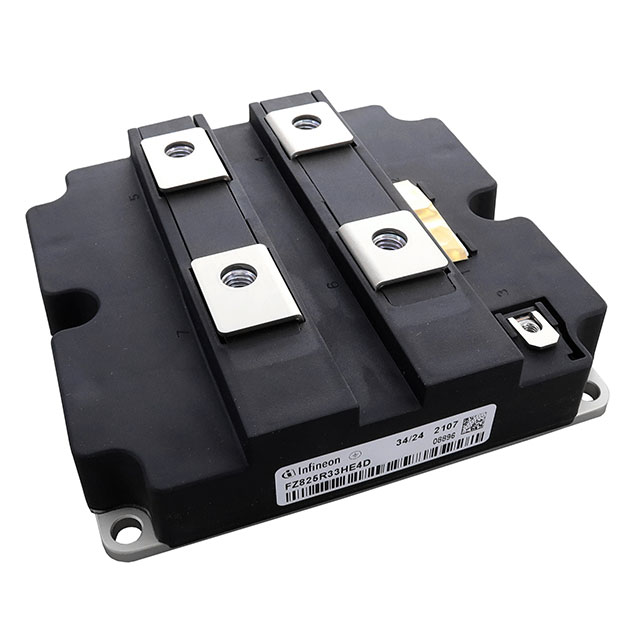

Infineon Technologies' IHM-B series FZ825R33HE4DBPSA1 is a high-voltage single-switch power module employing Trench Field Stop IGBT technology. This module offers a substantial 3300 V collector-emitter breakdown voltage and a continuous collector current capability of 825 A, with a maximum power dissipation of 2,400,000 W. The module features a low on-state voltage of 2.65 V at 15 V gate-emitter voltage and 825 A collector current. Designed for demanding applications, it has a standard input and an input capacitance (Cies) of 93.5 nF at 25 V. Mounting is facilitated via chassis mount. Operating within a temperature range of -40°C to 150°C (TJ), this module is packaged in an AG-IHVB130-3 module case. It is suitable for use in power conversion systems, industrial motor drives, and high-power switching applications.
Additional Information
Series: IHM-BRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single Switch |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.65V @ 15V, 825A |
| NTC Thermistor | No |
| Supplier Device Package | AG-IHVB130-3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 825 A |
| Voltage - Collector Emitter Breakdown (Max) | 3300 V |
| Power - Max | 2400000 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 93.5 nF @ 25 V |
