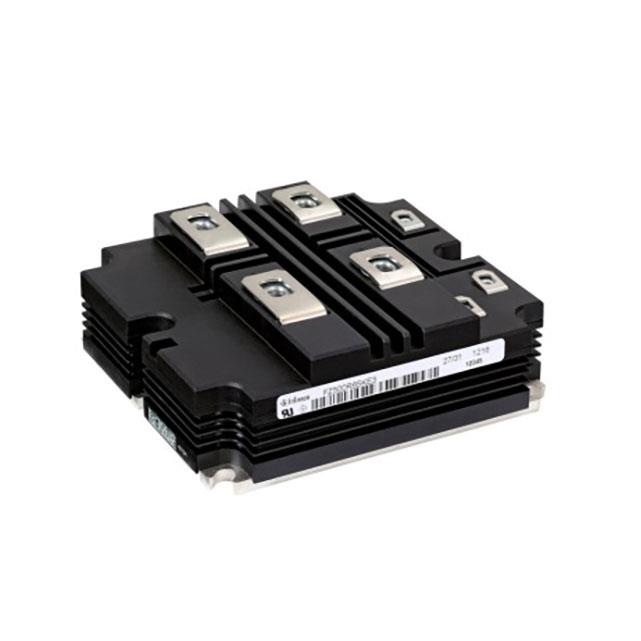

FZ800R45KL3B5NOSA2
IGBT MOD 4500V 1600A 9000WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies FZ800R45KL3B5NOSA2 is a Trench Field Stop IGBT Module featuring a dual, parallel configuration. This module is rated for a maximum collector-emitter voltage of 4500 V and a continuous collector current of 1600 A. The maximum power dissipation is 9000 W. Key electrical characteristics include a typical collector-emitter saturation voltage of 2.85 V at 15 V gate-emitter voltage and 800 A collector current, and an input capacitance (Cies) of 3.1 nF at 25 V. The module is designed for chassis mounting and operates within a temperature range of -50°C to 125°C. This component is suitable for high-power applications in industries such as industrial motor drives, renewable energy, and power generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Dual, Parallel |
| Operating Temperature | -50°C ~ 125°C |
| Vce(on) (Max) @ Vge, Ic | 2.85V @ 15V, 800A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 1600 A |
| Voltage - Collector Emitter Breakdown (Max) | 4500 V |
| Power - Max | 9000 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 3.1 nF @ 25 V |
