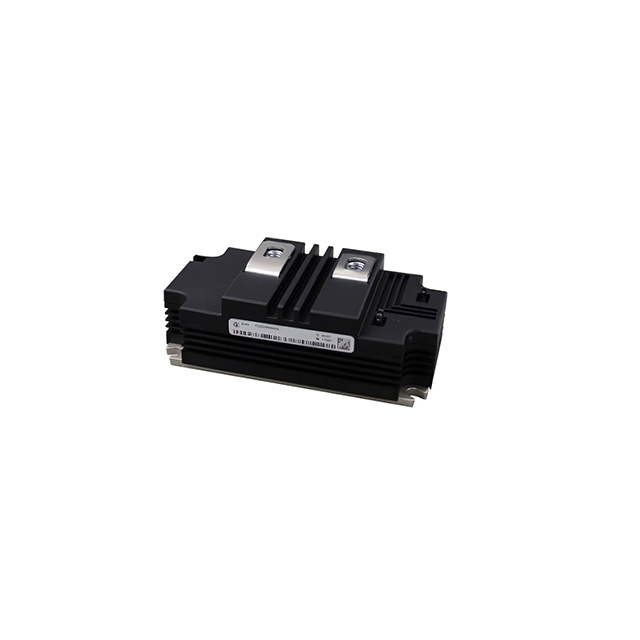

FZ250R65KE3NPSA1
IGBT MOD 6500V 500A 4800WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies FZ250R65KE3NPSA1 is a high-power IGBT module designed for demanding industrial applications. This single IGBT configuration features a robust 6500 V collector-emitter breakdown voltage and a maximum collector current of 500 A, delivering a substantial 4800 W power capability. The module is chassis mountable, facilitating efficient thermal management in high-power systems. With a typical Vce(on) of 3.4 V at 15 V gate-emitter voltage and 250 A collector current, it offers low conduction losses. The input capacitance (Cies) is rated at 69 nF at 25 V. Operating across a wide temperature range of -50°C to 125°C, this module is suitable for power conversion and motor control in sectors such as industrial automation, renewable energy, and high-voltage direct current (HVDC) transmission. The Infineon Technologies FZ250R65KE3NPSA1 is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -50°C ~ 125°C |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 250A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 500 A |
| Voltage - Collector Emitter Breakdown (Max) | 6500 V |
| Power - Max | 4800 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 69 nF @ 25 V |
